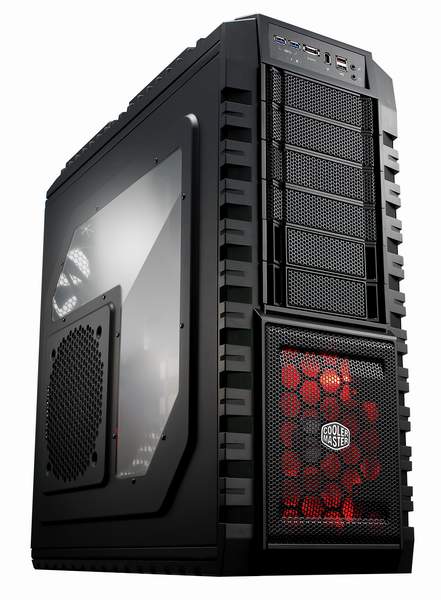

Cooler Master Presents a New Flagship to The High Air Flow Line: HAF X

The much anticipated HAF X debuts as the most powerful HAF (High Air Flow) chassis yet. Designed for performance systems, this chassis is able to house today’s latest and hottest CPUs, motherboards, graphics cards and is even compatible with USB 3.0 devices. With specialized support and cooling for graphic cards, massive airflow with the help of up to four gigantic fans and easy access to installed components, this is as close as it gets to a system builder’s ‘dream case’.

Extreme Airflow: Simply Cooler

HAF X provides powerful airflow with the help of massive-sized fans: dual 200mm top fans, front 230mm red LED on/off fan provide outstanding system cooling and extreme airflow for the entire system. An additional 200mm fan with dedicated air duct has also been added for unsurpassed VGA cooling.

Effortless Installation & Management: Simply Better

A unique feature of the HAF X is that users can easily swap hard drives with the new SATA dock without the need of removing the side panel. Other notable mentions include tool-free design, refined cable management system (including a power cable cover), safety on/off button cover and a bottom-mount power supply.


Expansion for tomorrow’s most demanding graphic cards is not a problem with the nine expansion slots, spacious interior for extra long boards (i.e. ATI Radeon HD 5970) and even an adjustable VGA card holder for added sturdiness.


SATA Dock for easy installation without removing side panel Supports front mounted SuperSpeed USB 3.0 Power cable cover
Accommodates ATI Radeon™ HD 5970 VGA graphics 9 expansion slots for increased expandability Air duct for great airflow


Material Steel + Plastic
Dimension Main unit: 230 x 550 x 599mm
Weight Net: 14.35kg; Gross:16.08kg
Motherboards M-ATX, ATX, E-ATX
5.25″ Drive Bay 6
3.5″ Drive Bay 5 hidden
SATA HDD Drive Bay / 2.5” Drive Bay 2(converted from 5.25” drive bay)
Cooling System Front: 230 x 30mm red LED on/off fan x 1
Top: 200 x 30mm fan x 2
Side: 200 x 30mm fan x 2 (optional)
Rear: 140 x 25mm fan x 1
VGA Fan Dock: 120 x 25mm or 120 x 38mm x 1(optional)
VGA Holder: 80 x 15mm fan x 1(optional)
I/O Panel USB 3.0 x 2,USB 2.0 x 2,Audio x 1,Mic x 1,e-SATA x 1,1394a x 1
PCI Slot 9
Power Supply Bottom–mounted / ATX PS2
