Review Brother MFC-7840N

Part: 1 2 3 4

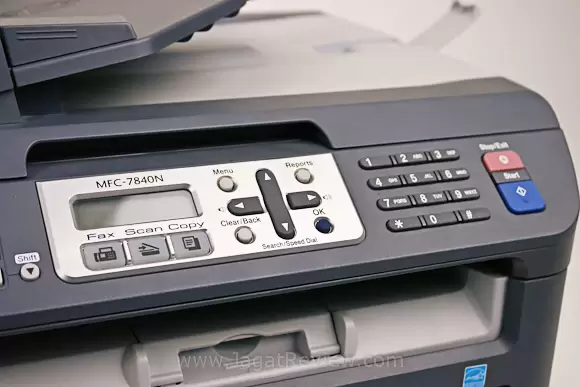

Sebuah kantor biasanya tidak hanya membutuhkan printer multifungsi yang baik, tetapi juga yang dapat terhubung ke jaringan atau line telepon. Brother MFC-7840N adalah sebuah printer laser multifungsi yang tidak hanya memiliki fungsi scan dan copy, tetapi juga fax dan network. Meskipun begitu, ukurannya tak lebih besar dari printer laser single function pada umumnya.

Sekilas spesifikasi Brother MFC-7840N:

  • Multifunction Laser Printer, dengan fungsi Scan, Copy, dan Fax.
  • Mencetak hitam putih sampai 2400×600 dpi, dengan kecepatan sampai 22ppm.
  • Memindai warna sampai 2400×600 dpi.
  • Fotokopi dan fax hitam putih.
  • Auto Document Feeder untuk Scan, Copy dan Fax.
  • Memori 32MB dapat menyimpan sampai 500 halaman fax.
  • Fasilitas networking.

[spoiler effect="slide" show="Spesifikasi Lengkap Brother MFC-7840N" hide="Tutup"]

BROTHER MFC-7840N

GENERAL

Dimensions (W x D x H) 428 x 396 x 304 mm (16.9 x 15.6 x 12.0 inch)
Weight *1 10 kg
Document Input Width (ADF) 5.8 – 8.5 inch (148 to 215.9 mm)
Document Input Length (ADF) 5.8 – 14 inch (148 to 355.6 mm)
Paper Capacity 250 Sheets (Transparencies: 10 Sheets)
Output Paper Capacity (Max.) 100 Sheets Face Down (80g/m2) 1 sheet face-up tray (straight paper path)
Auto Document Feeder Capacity up to 35 sheets
Memory 32 Mbyte
Interface USB 2.0 / LAN cable
Operating Environment – Temperature 50 – 90.5°F (10 – 32.5°C)
Operating Environment – Humidity 20% – 80% (w/o condensation)

FAX

Modem Speed 33,600bps
Coding System MH/ MR/ MMR/JBIG
Gray Scale Levels 8bit/256
Delayed Timer Up to 50 timers
Broadcasting (Max.) 258 locations
Page Memory (Max.) up to 500 pages (ITU-T Test Chart, Standard Resolution, JBIG) up to 600 pages (Brother #1Chart, Standard Resolution, JBIG)
One Touch Dialing 8 (4 x 2) locations
Speed Dialing (Max.) 200 stations
ECM (Error Correction Mode) Yes
Group Dialing (Max.) Up to 8 groups
Fax Forwarding Yes
Remote Access Yes

PRINTER

Print Speed (A4/Letter) Up to 22 ppm/ up to 23 ppm
Resolution HQ1200 (2400 x 600 dpi), 600 dpi, 300 dpi
Emulation PCL6, PS3 (BR-Script3)

COPY

Resolution Print: 600 x 600 dpi, 1200 dpi class
Reduction/ Enlargement 25% – 400% in 1% increments
Multi Copy (Stacking) Up to 99
Multi Copy (2 in 1, 4 in 1) Yes
Multi Copy (Sorting) Yes

SCANNER

Color/ Mono Color
Resolution – Optical From Glass Max 600 x 2400 dpi (color & mono)
From ADF Max 600 x 600 dpi (color & mono)
Grayscale Levels 256
TWAIN Compliant Yes
Viewer (including OCR Software) ScanSoft PaperPort 11SE (for Windows® )
Presto! PageManager7 (for Macintosh® )

PC FAX

For Windows® user Yes (Sending & Receiving)
For Macintosh® user Yes (Sending)

NETWORK

Node Type NC-6600h Type2 (Wired)
Protocols TCP/IP IPv4 ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port 9100, IPP, FTP Server, FTP Client, POP before SMTP, SMTP AUTH, APOP, TELNET, SNMPv1, HTTP Server, TFTP Client and Server, SMTP Client, ICMP, Web Services
TCP/IP IPv6 NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/ Port 9100, IPP, FTP Server, FTP Client, POP before SMTP, SMTP AUTH, APOP, TELNET, SNMPv1, HTTP Server, TFTP Client and Server, SMTP Client, ICMPv6, Web Services

OPERATING SYSTEM

For Windows® user Windows 2000 Professional, XP Home Edition, XP Professional, XP, Professional x64 Edition, Windows Vista ® , Windows Server 2003 (print only via network)
For Macintosh® user Macintosh Printer Driver for Mac OS X 10.2.4 or greater

[/spoiler]
