Gigabyte X79-UD3: Solusi 4 VGA Ekonomis untuk Sandy Bridge E

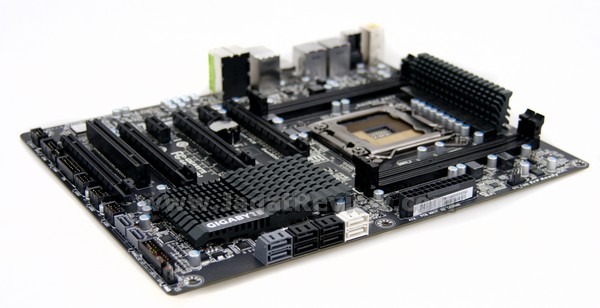

Board Gigabyte seri UD3 biasanya tergolong board entry-level. Akan tetapi, X79-UD3 ini hadir dengan kemampuan 4-way SLI. Apakah fitur tersebut adalah satu-satunya keunggulan board ini atau Gigabyte masih menawarkan kejutan lainnya? Silahkan simak review berikut ini! Seringkali kita memandang sebelah mata sebuah produk yang dilabeli entry level. Nama tersebut membawa konotasi bahwa produk tersebut memiliki kualitas yang lebih rendah dari kelas lainnya. Sepertinya kali ini Gigabyte mencoba membalikan pendapat ini dengan produknya tersebut. Apakah Gigabyte berhasil merubah pendapat ini? Kita akan buktikan bersama melalui pengujian di lab JagatReview.

Chipset X79

Spesifikasi

CPU
  1. Support for Intel® Core™ i7 processors in the LGA2011 package package
  2. L3 cache varies with CPU

(Please refer “CPU Support List” for more information.)

Chipset
  1. Intel® X79 Express Chipset
Memory
  1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
  2. 4 channel memory architecture
  3. Support for DDR3 2400/2133/1866/1600/1333/1066 MHz memory modules
  4. Support for non-ECC memory modules
  5. Support for Extreme Memory Profile (XMP) memory modules

(Please refer “Memory Support List” for more information.)

Audio
  1. Realtek ALC898 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for Dolby® Home Theater
  5. Support for S/PDIF Out
LAN
  1. 1 x Intel GbE LAN (10/100/1000 Mbit)
Expansion Slots
  1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2) * The PCIEX8_2 slot shares bandwidth with the PCIEX16_2 slot. When the PCIEX8_2 slot is populated, the PCIEX16_2 slot will operate at up to x8 mode. (All PCI Express x16 slots conform to PCI Express 3.0 standard.)
  3. 2 x PCI Express x1 slots (All PCI Express x1 slots conform to PCI Express 2.0 standard.)
  4. 1 x PCI slot
Multi-Graphics Technology
  1. Support for 4-Way/3-Way/2-Way AMD CrossFireX™/NVIDIA SLI technology.
Storage Interface Chipset:

  1. 2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices
  2. 4 x SATA 3Gb/s connectors (SATA2 2/3/4/5) supporting up to 4 SATA 3Gb/s devices
  3. Support for RAID 0, RAID 1, RAID 5, and RAID 10 * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.

3 x Marvell 88SE9172 chips:

  1. 4 x SATA 6Gb/s connectors (GSATA3 6/7/8/9) supporting up to 4 SATA 6Gb/s devices
  2. 2 x eSATA 6Gb/s connectors on the back panel, supporting up to 2 SATA 6Gb/s devices
  3. Support for RAID 0 and RAID 1
USB Chipset:

  1. Up to 14 USB 2.0/1.1 ports (8 ports on the back panel, 6 ports available through the internal USB headers)

2 x Fresco FL1009 chips:

  1. Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 6 x SATA 6Gb/s connectors
  4. 4 x SATA 3Gb/s connectors
  5. 1 x CPU fan header
  6. 4 x system fan headers
  7. 1 x front panel header
  8. 1 x front panel audio header
  9. 1 x S/PDIF Out header
  10. 3 x USB 2.0/1.1 headers
  11. 1 x USB 3.0/2.0 header
  12. 1 x serial port header
  13. 1 x Clear CMOS jumper
  14. 1 x Trusted Platform Module (TPM) header
Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x optical S/PDIF Out connector
  3. 1 x coaxial S/PDIF Out connector
  4. 8 x USB 2.0/1.1 ports
  5. 2 x USB 3.0/2.0 ports
  6. 2 x eSATA 6Gb/s connectors
  7. 1 x RJ-45 port
  8. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
I/O Controller
  1. iTE IT8728 chip
H/W Monitoring
  1. System voltage detection
  2. CPU/System temperature detection
  3. CPU/System fan speed detection
  4. CPU overheating warning
  5. CPU/System fan fail warning
  6. CPU/System fan speed control * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
BIOS
  1. 2 x 64 Mbit flash
  2. Use of licensed AMI EFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Unique Features
  1. Support for @BIOS
  2. Support for Q-Flash
  3. Support for Xpress BIOS Rescue
  4. Support for Download Center
  5. Support for Xpress Install
  6. Support for Xpress Recovery2
  7. Support for EasyTune * Available functions in EasyTune may differ by motherboard model.
  8. Support for Smart 6™
  9. Support for eXtreme Hard Drive (X.H.D)
  10. Support for ON/OFF Charge
  11. Support for Cloud OC
  12. Support for 3TB+ Unlock
  13. Support for TouchBIOS
  14. Support for Q-Share
Bundle Software
  1. Norton Internet Security (OEM version)
Operating System
  1. Support for Microsoft® Windows 7/Vista/XP
Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm



Platform Pengujian

  • Prosesor: Intel Core i7 3930K
  • Motherboard: Gigabyte X79-UD3
  • Graphic Card : NVIDIA GTX 560 Ti
  • Memory: KHX1600C9D3K4/16GX
  • Hard Drive: Kingston HyperX SSD 120 GB
  • Power Supply: Corsair Professional Series™ Gold AX850 — 80 PLUS® Gold Certified Fully-Modular Power Supply
  • Cooling : Corsair Hydro Series™ H80 High Performance Liquid CPU Cooler
  • Monitor: Philips 221E
  • Input: Genius (keyboard dan mouse)
  • OS: Windows 7 Ultimate 64-bit SP1
