Gigabyte GA-Z77X-D3H: Motherboard Mainstream Murah Dengan mSATA

Reading time:
May 19, 2012

Kelas motherboard D3H dari Gigabyte terkenal sebagai kelas motherboard mainstream. Umumnya motherboard kelas ini tak banyak menawarkan fitur yang menarik. Inilah yang membuat Gigabyte GA-Z77X-D3H berbeda dari pesaingnya. Motherboard ini disertai fitur mSATA yang jarang hadir dalam kelas mainstream.

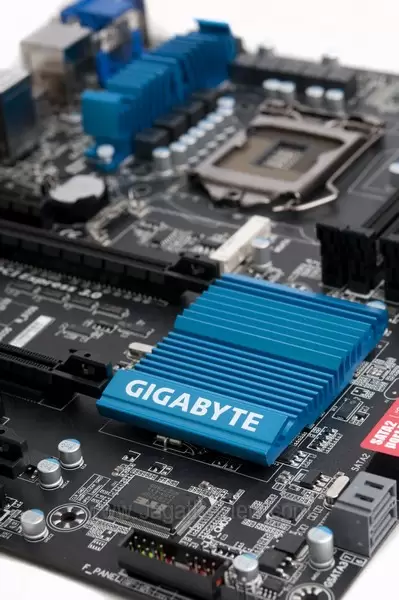

Gigabyte Z77X D3H Aufmarker3

Solusi mSATA yang dihadirkan pada motherboard ini bukan merupakan solusi baru. Kami pernah melihatnya pada  Gigabyte Z68XP-UD3-iSSD. Pada produk sebelumnya, dia dipaketkan dengan sebuah SSD mSATA dari Intel. Mungkin karena dirasa harga jualnya yang menjadi cukup tinggi maka Gigabyte tidak melanjutkan line up produk tersebut. Kali ini Gigabyte mencoba kembali dengan menggunakan chipset Z77 yang juga memiliki kemampuan SSD caching. Tapi kali ini paket penjualan tidak disertai dengan SSD Intel mSATA sehingga pengguna dapat menggunakan produk pilihan sendiri atau paling tidak memiliki opsi ini untuk digunakan kemudian hari.

Gigabyte Z77X D3H BoardDetail

 Chipset Z77

intel ivy bridge chipset z77

Spesifikasi



CPU
  1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
  2. L3 cache varies with CPU

(Some Intel® Core™ processors require a graphic card, please refer “CPU support List” for more information.)

Chipset
  1. Intel® Z77 Express Chipset
Memory
  1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
    * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
  2. Dual channel memory architecture
  3. Support for DDR3 2400(OC)/1600/1333/1066 MHz memory modules
  4. Support for non-ECC memory modules
  5. Support for Extreme Memory Profile (XMP) memory modules

(Please refer “Memory Support List” for more information.)

Onboard GraphicsChipset:

  1. 1 x D-Sub port
  2. 1 x DVI-D port, supporting a maximum resolution of 1920×1200
    * The DVI-D port does not support D-Sub connection by adapter.
  3. 1 x HDMI port, supporting a maximum resolution of 1920×1200
Audio
  1. VIA VT2021 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
LAN
  1. 1 x Atheros GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    1. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
      * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.
      (The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.)
      * PCIE Gen.3 is dependent on CPU and expansion card compatibility.
    1. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
      * The PCIEX4 slot shares bandwidth with the PCIEX1_1/2/3 slots. The PCIEX1_1/2/3 slots slots will become unavailable when a PCIe x4 expansion card is installed.
    1. 3 x PCI Express x1 slots
      (PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)
  1. 1 x PCI slots
Multi-Graphics Technology
  1. Support for 2-Way AMD CrossFireX™/NVIDIA SLI technology (PCIEX16 and PCIEX8)
Storage InterfaceChipset:

  1. 2 x SATA 6Gb/s connectors (SATA3 0/SATA3 1) supporting up to 2 SATA 6Gb/s devices
  2. 4 x SATA 3Gb/s connectors (SATA2 2~SATA2 5) supporting up to 4 SATA 3Gb/s devices
  3. 1 x mSATA connector
    * The SATA2 5 connector will become unavailable when the mSATA connector is installed with a solid state drive.
  4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.

1 x Marvell 88SE9172 chip:

  1. 2 x SATA 6Gb/s connectors (GSATA3 6/GSATA3 7) supporting up to 2 SATA 6Gb/s devices
  2. Support for RAID 0 and RAID 1
USBChipset:

  1. Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
    * In Windows XP, the Intel USB 3.0 ports can support up to USB 2.0 transfer speed.
  2. Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

VIA VL800 chip:

  1. Up to 4 USB 3.0/2.0 ports on the back panel
    * Due to a Windows 7 limitation, please connect your USB device(s) to the USB 2.0/1.1 port(s) before the VIA USB 3.0 controller driver is installed.
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 4-pin ATX 12V power connector
  3. 4 x SATA 6Gb/s connectors
  4. 4 x SATA 3Gb/s connectors
  5. 1 x mSATA connector
  6. 1 x CPU fan header
  7. 3 x system fan headers
  8. 1 x front panel header
  9. 1 x front panel audio header
  10. 1 x S/PDIF Out header
  11. 1 x USB 3.0/2.0 header
  12. 2 x USB 2.0/1.1 headers
  13. 1 x serial port header
  14. 1 x Clear CMOS jumper
  15. 1 x Trusted Platform Module (TPM) header
Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x D-Sub port
  3. 1 x DVI-D port
  4. 1 x HDMI port
  5. 6 x USB 3.0/2.0 ports
  6. 2 x USB 2.0/1.1 ports
  7. 1 x RJ-45 port
  8. 1 x optical S/PDIF Out connector
  9. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In/Mic In, Line Out)
I/O Controller
  1. iTE I/O Controller Chip
H/W Monitoring
  1. System voltage detection
  2. CPU/System temperature detection
  3. CPU/System fan speed detection
  4. CPU overheating warning
  5. CPU/System fan fail warning
  6. CPU/System fan speed control
    * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
BIOS
  1. 2 x 64 Mbit flash
  2. Use of licensed AMI EFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Unique Features
  1. Support for @BIOS
  2. Support for Q-Flash
  3. Support for Xpress Install
  4. Support for Xpress Recovery2
  5. Support for EasyTune
    * Available functions in EasyTune may differ by motherboard model.
  6. Support for eXtreme Hard Drive (X.H.D)
  7. Support for Auto Green
  8. Support for ON/OFF Charge
  9. Support for Q-Share
  10. Support for 3D Power
  11. Support for EZ Setup
  12. Support for LAN Optimizer (Intelligent optimization network management tool)
Bundle Software
  1. Norton Internet Security (OEM version)
  2. Intel® Smart Response Technology
  3. Intel® Rapid Start Technology
  4. LucidLogix Virtu MVP
    * Make sure the monitor cable has been connected to the integrated graphics port on the back panel.
Operating System
  1. Support for Microsoft® Windows 7/XP
Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website

Platform Pengujian

  • Prosesor: Intel Core i7 3770K                                                                                                                        Intel Ivy Bridge Aufmarker 1
  • Motherboard: Gigabyte Z77X-D3H
  • Graphic Card : NVIDIA GTX 560 Ti                                                                          gtx 560 ti card
  • Memory: 2 Keping dari KHX1600C9D3K4/16GX                                               hx prodimg genesis4
  • Hard Drive: Kingston HyperX SSD 120 GB                                                                Kingston HyperX SSD 120GB Kemasan
  • Power Supply: Corsair Professional Series™ Gold AX850 — 80 PLUS® Gold Certified Fully-Modular Power Supplyax850 angled 1
  • Cooling : Corsair Hydro Series™ H80 High Performance Liquid CPU Coolerh80 rad fans
  • Monitor: Philips 221E
  • Input: Genius (keyboard dan mouse)
  • OS: Windows 7 Ultimate 64-bit SP1
