Review-Asus Rampage IV Gene: Micro-ATX Paling Jempolan

Part: 1 2 3 4 5 6 7 8 9

Motherboard Rampage IV Extreme dari seri Republic of Gamers (ROG) Asus memang luar biasa. Namun, ada kalanya pengguna tidak membutuhkan beberapa feature yang disediakan dan lebih tertarik pada ukuran fisik yang lebih ringkas. Untuk memenuhi kebutuhan ini, Asus menyediakan seri Rampage Gene, motherboard micro-ATX yang juga anggota dari keluarga ROG.

Rampage IV Gene adalah versi terbaru yang sudah dilengkapi dengan chipset Intel X79 untuk prosesor Sandy Bridge Extreme (socket LGA 2011).  Biarpun berukuran kecil, Motherboard micro-ATX ini dijejali berbagai feature kelas atas seperti dukungan memori DDR3 hingga 2400 MHz dan PCI-Express 3.0.

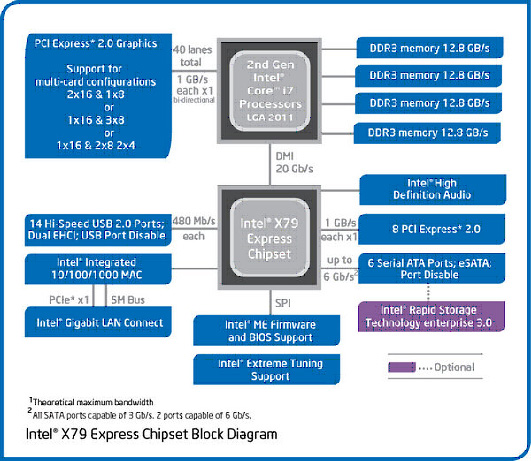

 Chipset X79

Spesifikasi

CPU Intel® Socket 2011 for 2nd Generation Core™ i7 Processors
Supports Intel® Turbo Boost Technology 2
* Refer to www.asus.com for CPU support list
Chipset Intel® X79
Memory 4 x DIMM, Max. 32GB, DDR3 2400(O.C.)/2133(O.C.)/1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Quad Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
Multi-GPU Support Supports NVIDIA® SLI™ Technology
Supports AMD CrossFireX™ Technology
Expansion Slots 2 x PCIe 3.0/2.0 x16 (dual x16, red)
1 x PCIe 3.0/2.0 x16 (x8 mode, red)
1 x PCIe 2.0 x4
Storage Intel® X79 chipset :
2 x SATA 6Gb/s port(s), red
3 x SATA 3Gb/s port(s), black
1 x eSATA 3Gb/s port(s), red
Support Raid 0, 1, 5, 10
ASMedia® ASM1061 controller : *1
2 x SATA 6Gb/s port(s), red
LAN Intel®, 1 x Gigabit LAN Controller(s)
Audio SupremeFX III built-in 8-Channel High Definition Audio CODEC
– Output Signal-to-Noise Ratio (A-Weighted): 110 dB
– Output THD+N at 1kHz: 95 dB
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
– SupremeFX Shielding™ Technology
– 1500 uF Audio Power Capacitor
– Gold-plated jacks
– X-Fi® Xtreme Fidelity™
– EAX® Advanced™ HD 5.0
– THX® TruStudio PRO™
– Creative ALchemy
– Blu-ray audio layer Content Protection
– Optical S/PDIF out port(s) at back panel
USB Ports ASMedia® USB 3.0 controller :
4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
Intel® X79 chipset :
12 x USB 2.0 port(s) (8 at back panel, black+white, 4 at mid-board)
Overclocking Features ROG Connect
Extreme Engine Digi+ II :
– 8 -phase CPU power design
– 3 -phase VCCSA power design
– 2 + 2 phase DRAM power design
Mem TweakIt
ProbeIt
UEFI BIOS features :
– ROG BIOS Print
– GPU.DIMM Post
GameFirst
iROG
Extreme Tweaker
Loadline Calibration
USB BIOS Flashback
Overclocking Protection :
– COP EX (Component Overheat Protection – EX)
– ASUS C.P.R.(CPU Parameter Recall)
Special Features ASUS TurboV EVO :
– CPU Level Up
ASUS EPU :
– EPU
ASUS Exclusive Features :
– MemOK!
– Onboard Button : Power/Reset/Clr CMOS (at back IO)
ASUS Quiet Thermal Solution :
– ASUS Fan Xpert
ASUS EZ DIY :
– ASUS Q-Shield
– ASUS O.C. Profile
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 2
– ASUS MyLogo 2
ASUS Q-Design :
– ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
– ASUS Q-Slot
– ASUS Q-DIMM
– ASUS Q-Connector
Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s)
1 x eSATA 3Gb/s
1 x LAN (RJ45) port(s)
2 x USB 3.0
8 x USB 2.0 (one port can be switched to ROG Connect)
1 x Optical S/PDIF out
6 x Audio jack(s)
1 x Clear CMOS button(s)
1 x ROG Connect On/ Off switch(es)
Internal I/O Ports 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
4 x SATA 6Gb/s connector(s)
3 x SATA 3Gb/s connector(s)
2 x CPU Fan connector(s)
3 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
11 x ProbeIt Measurement Points
1 x Power-on button(s)
1 x Reset button(s)
1 x Go Button(s)
Accessories User’s manual
I/O Shield
2 x SATA 3Gb/s cable(s)
4 x SATA 6Gb/s cable(s)
1 x SLI bridge(s)
1 x Q-connector(s) (2 in 1)
1 x ROG Connect cable(s)
1 x ROG theme label(s)
1 x 12 in 1 ROG Cable Label(s)
1 x ROG Door Hanger(s)
BIOS 64Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI2.0a Multi-Language BIOS
Manageability WfM2.0, DMI2.0, WOL by PME, WOR by PME, PXE
Support Disc Support DVD:
– Drivers and applications
* ASUS AI Suite II
* ROG CPU-Z
* ROG GameFirst Utility
* Sound Blaster X-Fi MB2 Utility
* ROG Mem TweakIt Utility
* ASUS AI Charger+
* WinZip
* ASUS USB 3.0 Boost
* ASUS Webstorage
* DAEMON Tools Pro Standard
* Kaspersky® Anti-Virus 1-year license
Form Factor uATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Note *1: These SATA ports are for data hard drivers only. ATAPI device is not supported.

Platform Pengujian



  • Prosesor: Intel Core i7 3930K
  • Motherboard: ASUS Rampage IV Formula
  • Graphic Card : NVIDIA GTX 560 Ti
  • Memory: KHX1600C9D3K4/16GX
  • Hard Drive: Kingston HyperX SSD 120 GB
  • Power Supply: Corsair Professional Series™ Gold AX850 — 80 PLUS® Gold Certified Fully-Modular Power Supply
  • Cooling : Corsair Hydro Series™ H80 High Performance Liquid CPU Cooler
  • Monitor: Philips 221E
  • Input: Genius (keyboard dan mouse)
  • OS: Windows 7 Ultimate 64-bit SP1
