in: Motherboard | April 18, 2013 | by: Bhisma Sidarto

Review Motherboard Gigabyte Z77X-UP7: Si Orange Legenda Overclocking Telah Kembali

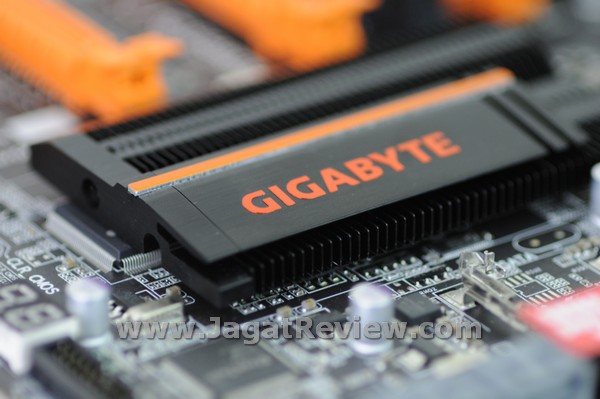

The Orange motherboard itulah nama kesayangan yang berikan kepada lini motherboard overclocking dari Gigabyte. Setelah sekian lama absen dari seri mainstream, akhirnya Gigabyte mengeluarkan motherboard overclocking dalam bentuk Z77X-UP7. Dengan mengusung tagline A New Legend is Born, motherboard ini mencoba menggabung sebuah motherboard yang khusus untuk overclocking tetapi juga mencoba mengakomodasi kebutuhan tipikal power user. Akankah harapan ini tercapai? Mari kita simak bersama.

Alva Jonathan dari JagatReview Overclocking Team dengan “versi awal” dari Z77X-UP7 di Computex 2012

Sebelumnya motherboard berhak menyandang nama motherboard overclocker dari Gigabyte hanya X58A-OC dan X79-UD7. Keduanya merupakan motherboard yang menggunakan chipset kelas extreme. Banyak overclocker yang berharap Gigabyte membawa lini overclocking kekelas mainstream. Sepertinya harapan tersebut terjawab ketika pada Computex 2012 Gigabyte memamerkan sebuah board yang menyandang nama Z77X-UD7. Pada saat itu masih merupakan spekulasi apakah board tersebut merupakan board overclocking karena jika kita lihat diatas versi awal memiliki color scheme yang all-black . Ternyata harapan para overclocker dunia diwujudkan Gigabyte ketika produk final dari board ini mengusung warga orange-hitam.





Para overclocker berharap banyak pada Z77X-UD7. Cukup wajar mengingat silsilah yang harus diikutinya. X58A-OC menyandang nama sebagai motherboard overclocking pertama dunia, ini membuat penerus dari motherboard ini akan diharapkan untuk mengikuti atau bahkan melebihi prestasi board ini. Terbukti X79_UD7 yang tidak berhasil memenuhi ekspektasi tersebut. Hadirnya Z77X-UD7 dengan tagline A New Legend Is Born mencoba untuk memenuhi garis keturunan sebagai penerus dari X58A-OC.

Penasaran dengan performa motherboard ini? Silahkan simak ulasan lengkap kami dalam review di bawah ini.





Chipset Z77

Spesifikasi

CPU
  1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
  2. L3 cache varies with CPU

(Some Intel® Core™ processors require a graphic card, please refer “CPU support List” for more information.)

Chipset
  1. Intel® Z77 Express Chipset
Memory
  1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
    * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  2. Dual channel memory architecture
  3. Support for DDR3 2800(OC)/1600/1333/1066 MHz memory modules
  4. Support for non-ECC memory modules
  5. Support for Extreme Memory Profile (XMP) memory modules

(Please refer “Memory Support List” for more information.)

Onboard Graphics Integrated Graphics Processor:

  1. 1 x D-Sub port
  2. 1 x DVI-D port, supporting a maximum resolution of 1920×1200
    * The DVI-D port does not support D-Sub connection by adapter.
  3. 1 x HDMI port, supporting a maximum resolution of 1920×1200
  4. 1 x DisplayPort, supporting a maximum resolution of 2560×1600
Audio
  1. Realtek ALC898 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF In
  5. Support for S/PDIF Out
LAN
  1. 1 x Atheros GbE LAN chip (10/100/1000 Mbit) (LAN1)
  2. 1 x Intel GbE LAN chip (10/100/1000 Mbit) (LAN2)
Wireless Communication module
  1. Wi-Fi 802.11 a/b/g/n, Supports 2.4/5 GHz Dual-Band
  2. Bluetooth 4.0, 3.0+HS, 2.1+EDR
Expansion Slots
    1. 3 x PCI Express x16 slots, running at x16 (PCIEX16_1~3)
      * For optimum performance, if only one expansion card is to be installed, be sure to install it in the PCIEX16_2 slot.
    1. 2 x PCI Express x16 slots, running at x8 (PCIEX8_1~2)
      * The PCIEX8_1 slot shares bandwidth with the PCIEX16_1 slot and the PCIEX8_2 slot with PCIEX16_3. The PCIEX16_1/PCIEX16_3 slot will operate at up to x8 mode when the PCIEX8_1/PCIEX8_2 is populated.
      (The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.)
      * Whether PCI Express 3.0 is supported depends on CPU and graphics card compatibility.
      * The PCIEX16_2 slot will become unavailable when an expansion card is installed in the orange PCI Express x16 slot.
  1. 2 x PCI Express x1 slots
    (All PCI Express x1 slots conform to PCI Express 2.0 standard.)
Multi-Graphics Technology
  1. Support for 4-Way/3-Way/2-Way AMD CrossFireX™/NVIDIA SLI technology
Storage Interface Chipset:

  1. 2 x SATA 6Gb/s connectors (SATA3 0~1) supporting up to 2 SATA 6Gb/s devices
  2. 4 x SATA 3Gb/s connectors (SATA2 2~5) supporting up to 4 SATA 3Gb/s devices
  3. 1 x mSATA connector
    * The SATA2 5 connector will become unavailable when the mSATA connector is installed with a solid state drive.
  4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.

2 x Marvell 88SE9172 chips:

  1. 4 x SATA 6Gb/s connectors (GSATA3 6~9) supporting up to 4 SATA 6Gb/s devices
  2. Support for RAID 0 and RAID 1
USB Chipset:

  1. Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  2. Up to 4 USB 2.0/1.1 ports (available through the internal USB headers)

VIA VL800 chip:

  1. Up to 4 USB 3.0/2.0 ports on the back panel
    * Due to a Windows 7 limitation, please connect your USB device(s) to the Intel controlled USB port(s) (located below the PS/2 keyboard/mouse port) before the VIA USB 3.0 controller driver is installed.

Etron EJ168 chip:

  1. Up to 2 USB 3.0/2.0 ports (available through the internal USB header)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 2 x 8-pin ATX 12V power connectors
  3. 1 x PCIe power connector
  4. 6 x SATA 6Gb/s connectors
  5. 4 x SATA 3Gb/s connectors
  6. 1 x mSATA connector
  7. 1 x CPU fan header
  8. 6 x system fan headers
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x S/PDIF Out header
  12. 1 x S/PDIF In header
  13. 2 x USB 3.0/2.0 headers
  14. 2 x USB 2.0/1.1 headers
  15. 1 x serial port header
  16. 1 x Clear CMOS jumper
  17. 1 x power button
  18. 1 x reset button
  19. 1 x Clear CMOS button
  20. 1 x Gear button
  21. 1 x CPU BCLK Down button
  22. 1 x CPU BCLK Up button
  23. 1 x CPU Ratio Down button
  24. 1 x CPU Ratio Up button
  25. 1 x onboard voltage measurement module
  26. 2 x BIOS switchs
  27. 1 x LN2 switch
Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x D-Sub port
  3. 1 x DVI-D port
  4. 1 x optical S/PDIF Out connector
  5. 1 x HDMI port
  6. 1 x DisplayPort
  7. 6 x USB 3.0/2.0 ports
  8. 2 x RJ-45 ports
  9. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
I/O Controller
  1. iTE I/O Controller Chip
H/W Monitoring
  1. System voltage detection
  2. CPU/System temperature detection
  3. CPU/System fan speed detection
  4. CPU overheating warning
  5. CPU/System fan fail warning
  6. CPU/System fan speed control
    * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
BIOS
  1. 2 x 64 Mbit flash
  2. Use of licensed AMI EFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Unique Features
  1. Support for @BIOS
  2. Support for Q-Flash
  3. Support for Xpress Install
  4. Support for Xpress Recovery2
  5. Support for EasyTune
    * Available functions in EasyTune may differ by motherboard model.
  6. Support for eXtreme Hard Drive (X.H.D)
  7. Support for Auto Green
  8. Support for ON/OFF Charge
  9. Support for Q-Share
  10. Support for 3D Power
  11. Support for EZ Setup
Bundle Software
  1. Norton Internet Security (OEM version)
  2. Intel® Rapid Start Technology
  3. Intel® Smart Connect Technology
  4. Intel® Smart Response Technology
  5. LucidLogix Virtu MVP
    * Make sure the monitor cable has been connected to the integrated graphics port on the back panel.
Operating System
  1. Support for Microsoft® Windows 8/7/XP
Form Factor
  1. E-ATX Form Factor; 30.5cm x 26.4cm

Platform Pengujian Gigabyte Z77X-UP7

  • Prosesor: Intel Core i5 3570K
  • Motherboard: Gigabyte Z77X-UP7
  • Graphic Card : NVIDIA GTX 560 Ti
  • Memory: 2 Keping dari KHX1600C9D3K4/16GX
  • Hard Drive: Kingston HyperX SSD 120 GB
  • Power Supply: Corsair Professional Series™ Gold AX850 — 80 PLUS® Gold Certified Fully-Modular Power Supply
  • Cooling : Corsair Hydro Series™ H80 High Performance Liquid CPU Cooler
  • Monitor: Monitor 21.5″ dengan resolusi 1920×1080
  • Input: Genius (keyboard dan mouse)
  • OS: Windows 7 Ultimate 64-bit SP1
