in: Printer | December 2, 2015 | by: Friska Suryawinata

Review Printer Canon PIXMA MG7570

Dengan semakin canggihnya perkembangan printer multifungsi saat ini, tidaklah mengherankan jika kebanyakan produk printer multifungsi yang beredar saat ini akan menawarkan beragam jenis fitur termasuk Wireless. Tak hanya itu, printer yang dimaksimalkan untuk bisa melakukan cetak foto juga semakin marak beredar, baik untuk kebutuhan di rumah maupun untuk bisnis kecil menengah.

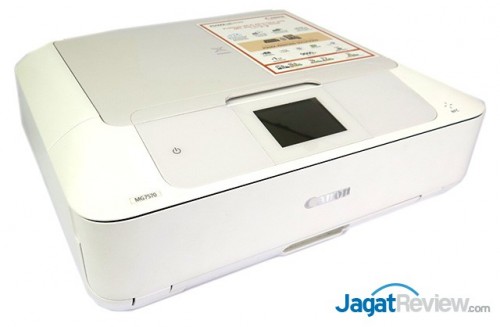

pixma mg7570 (9)

Printer Canon PIXMA MG7570 merupakan salah satu printer seri PIXMA yang didesain secara maksimal untuk mampu melakukan printing foto. Walau demikian, printer ini juga bisa digunakan untuk melakukan printing hitam putih serta fitur Copy dan Scan juga terdapat di dalamnya. Dengan dilengkapi dengan Wireless Ready, NFC, serta terdapat slot SD Card, maka printer Canon PIXMA MG7570 ini dapat digunakan bahkan tanpa harus terhubung dengan PC sekalipun.

Spesifikasi

Print
Maximum Printing Resolution 9600 (horizontal) x 2400 (vertical)dpi
Print Head / Ink Number of Nozzles: Total 6,656 nozzles
Ink Droplet Size (minimum): 1pl
Ink Tank: PGI-750 (Pigment Black), CLI-751 (Cyan, Magenta, Yellow, Black, Gray)
[Optional: PGI-750XL (Pigment Black) , CLI-751XL (Cyan, Magenta, Yellow, Black, Gray)]
Print Speed
Based on ISO / IEC 24734.
Document: Colour:
ESAT / Simplex:
Approx. 10.0ipm
Document: B/W:
ESAT / Simplex:
Approx. 15.0ipm
Photo (4 x 6″):
PP-201 / Borderless
Approx. 21secs.
Printable Width Bordered: Up to 203.2mm (8-inch)
Borderless: Up to 216mm (8.5-inch)
Printable Area Borderless Printing: Top / Bottom / Right / Left margin: each 0mm
(supported paper size: A4 / Letter / 4 x 6″ / 5 x 7″ / 8 x 10″)
Bordered Printing: Top margin: 3mm, Bottom margin: 5mm,
Left / Right margin: each 3.4mm (Letter / Legal: Left: 6.4mm, Right: 6.3mm)
Bordered Auto 2-sided printing: Top margin: 5mm, Bottom margin: 5mm,
Left / Right margin: 3.4mm (Letter / Legal: Left: 6.4mm, Right: 6.3mm)
Recommended Printing Area Top Margin: 40.7mm
Bottom Margin: 37.4 mm
Paper Size A4, A5, B5, Letter, Legal, 4 x 6″, 5 x 7″, 8 x 10″, Envelopes (DL, COM10),
Custom Size [cassette (upper): width 89 – 200mm, length 127 – 184.99mm, cassette (lower): width 90 – 215.9mm, length 185 – 355.6mm]
Paper Handling
[Cassette, (Upper)]
(Maximum Number)
Photo Paper Pro Platinum (PT-101) 4 x 6″ = 20
Photo Paper Plus Glossy II
(PP-201)
4 x 6″ = 20
Photo Paper Plus Semi-Gloss (SG-201) 4 x 6″ = 20
Glossy Photo Paper “Everyday Use” (GP-601) 4 x 6″ = 20
Matte Photo Paper (MP-101) 4 x 6″ = 20
Photo Stickers (PS-101) 1
Paper Handling
[Cassette (Lower)]
(Maximum Number)
Plain Paper A4, A5, B5, Letter, Legal = 125
High Resolution Paper (HR-101N) A4 = 65
Photo Paper Pro Platinum (PT-101) A4 =10
Photo Paper Plus Glossy II (PP-201) A4 =10
Photo Paper Pro Luster (LU-101) A4 =10
Photo Paper Plus Semi-Gloss (SG-201) A4, 8 x 10″ = 10
Photo Paper “Everyday Use” (GP-601) A4 =10
Matte Photo Paper (MP-101) A4 =10
Envelope European DL / US Com. #10 = 10
Other Fine Art Paper A4, LTR = 1
Disc Handling (Disc tray) 1 (Manual handling by disc tray)
Support Media for Auto 2-sided printing Type: Plain Paper
Size: A4, A5, B5, Letter
Paper Weight Cassette (upper): Canon specialty paper: max paper weight: approx. 300g/m2
(Photo Paper Pro Platinum PT-101)
Cassette (lower): Plain Paper: 64 – 105g/m2,
Canon specialty paper: max paper weight: approx. 300g/m2
(Photo Paper Pro Platinum PT-101)
Ink End Sensor Optical sensor + Dot Count
Print Head Alignment Auto / Manual
Scan
Scanner Type Flatbed
Scanning Method CIS (Contact Image Sensor)
Optical Resolution 2400 x 4800dpi
Selectable Resolution 25 – 19200dpi
Scanning Bit Depth (Input / Output) Grayscale: 16 bits / 8 bits
Colour: 48 bits / 24 bits (RGB each 16 bits / 8 bits )
Line Scanning Speed Grayscale: 1.2ms/line (300dpi)
Colour: 3.5ms/line (300dpi)
Scanning Speed Reflective:
A4 Colour / 300dpi
14secs.
Maximum Document Size Flatbed: A4 / LTR (216 x 297mm)
Copy
Maximum Document Size A4 / LTR (216 x 297mm)
Compatible Media Size: A4, A5, B5, LTR, 4 x 6″, 5 x 7″
Type: Plain Paper
Photo Paper Pro Platinum (PT-101)
Photo Paper Plus Glossy II (PP-201)
Photo Paper Pro Luster (LU-101)
Photo Paper Plus Semi-Gloss (SG-201)
Glossy Photo Paper “Everyday Use” (GP-601)
Matte Photo Paper (MP-101)
Printable disc
Image Quality 3 positions (Fast, Standard, High)
Density Adjustment 9 positions, Auto intensity (AE copy)
Copy Speed
Based on ISO / IEC 29183.
Document: Colour:
sFCOT / Simplex:
19secs.
Document: Colour:
sESAT / Simplex:
7.7ipm
Multiple Copy Black / Colour: 99 pages
Network
Protocol TCP/IP
Wired LAN Network Type: IEEE802.3u (100BASE-TX) / IEEE802.3 (10BASE-T)
Data Rate: 10M / 100Mbps (auto switchable)
Wireless LAN Network Type: IEEE802.11n / IEEE802.11g / IEEE802.11b (infrastructure mode)
Frequency Band: 2.4GHz
Range: Indoor 50m (depends on the transmission speed and conditions)
Security: WEP64 / 128bit, WPA-PSK (TKIP / AES), WPA2-PSK (TKIP / AES)
System Requirements Windows: Windows 8 / Windows 7 / Window Vista ) / Windows XP
Macintosh: Mac OS X v10.6.8 or later
General
Operation Panel Display: LCD (3.5inch / 8.8cm TFT colour/ Touch)
Interface USB 2.0 Hi-Speed, Card Slots, Ethernet
NFC Available
Apple AirPrint Available
Google Cloud Print Available
PictBridge Wireless LAN: Available
LAN: Available
PIXMA Cloud Link From smartphone or tablet: Available
From printer: Available
PIXMA Printing Solutions Available
Access Point Mode Available
Self-Opening Paper Output Tray Available
Operating Environment Temperature: 5 – 35°C
Humidity: 10 – 90% RH
(no dew condensation)
Recommended Environment Temperature: 15 – 30°C
Humidity: 10 – 80% RH
(no dew condensation)
Storage Environment Temperature: 0 – 40°C
Humidity: 5 – 95% RH
(no dew condensation)
Acoustic Noise (PC Print) Photo (4 x 6″) Approx. 44.0dB(A)
Document (A4, B/W)
Quiet Mode OFF:
Approx. 52.1dB(A)
Document (A4, B/W)
Quiet Mode ON:
Approx. 39.8dB(A)
Power AC 100 – 240V, 50 / 60Hz
Power Consumption Standby (scanning lamp is off)
(USB connection to PC):
Approx. 1.0W
OFF: Approx. 0.2W
Copying:
(USB connection to PC)
Approx. 17W
Environment Regulation: RoHS (EU, China), WEEE (EU)
Eco-Label: Energy Star, EPEAT
Dimension (W x D x H) Approx. 435 x 370 x 148mm
Weight Approx. 7.9kg
