Review Motherboard: Gigabyte Z170X-Gaming 5

Seri G1 merupakan seri motherboard Gigabyte yang berfokus memberikan yang terbaik dalam range tertentu. Seri yang diperkenalkan berbarengan dengan keluarnya chipset Z87 ini telah memasuki generasi ketiga. Kini hadir mengusung  chipset terbaru dari Intel, motherboard seri ini pun mengusung segudang fitur baru. Apakah Seri G1 Gaming yang hadir dengan 100 Series patut masuk ke dalam pilihan Anda? Mari cermati bersama!

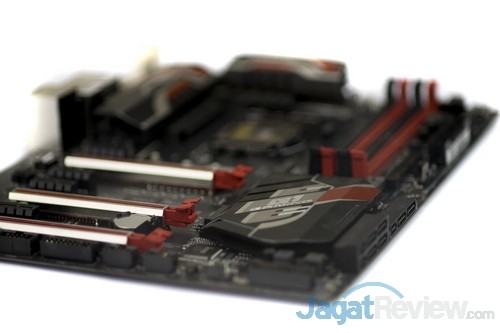

Gigabyte_Z170X-Gaming5_Aufmarker2

Sebuah line up motherboard bagaikan sebuah keluarga. Mulai dari kakak tertua yang biasanya paling matang secara emosi dan tingkah laku, hingga si bungsu yang masih labil dan harus banyak belajar. Jika Anda memberikan tugas untuk dikerjakan oleh kakak tertua, tentunya dia akan dapat dengan cepat melakukan tugas tersebut. Ini tentunya berbeda jika Anda memberikan tugas tersebut pada si bungsu. Tugas tersebut akan selesai, tetapi mungkin akan membutuhkan waktu lebih lama. Bagaimana jika tugas tersebut di berikan kepada anak tengah? Tentunya tidak akan secepat kakak tertua, tetapi tidak selambang si bungsu. Itulah analogi yang kami coba pakai kepada keluarga G1 Gaming dari Gigabyte. Keluarga ini beranggotakan G1 Gaming, Gaming 7, Gaming 5 dan Gaming 3. Gigabyte Z170X G1 Gaming merupakan kakak tertua yang superior, sedangkan Gaming 3 adalah si bungsu yang masih harus banyak belajar. Lalu siapakah anak tengah dari “keluarga” ini? Kalau melihat penampilan dan fitur yang diusung, gelar tersebut patut di sandang oleh Gaming 5. Walau memiliki fitur yang bersaing dengan “kakak” keduanya Gaming 7, tetapi kami secara penampilan Gaming 5 lebih tepat menyandang gelar “anak tengah”.

Apakah gelar “anak tengah” yang disandang oleh Z170X-Gaming 5 itu adalah sesuatu yang buruk atau baik? Tergantung kepada pengguna yang ini “mengadopsi” motherboard ini. Mari kita ulas bersama dan mencoba memutuskan apakah “anak tengah” ini patut di pinang!

Prosesor: Intel Core i7-6700K

Intel-Core-i7-6700K-Package

Motherboard: Gigabyte Z170N- Gaming 5 (Intel Z170)

Memory: Kingston HyperX Fury 8GB DDR4 2666 MHz (Dual Channel)

DDR4 HyperX Fury

Graphics Card: NVIDIA GeForce GTX 780 Ti

Storage: Kingston HyperX Fury 240 GB SSD

SSD HyperX Fury

Power Supply: Corsair AX850

corsair-ax850

CPU Cooler: Corsair H80

corsair-h80

Monitor: LCD Monitor 1920×1080

Input: Generic Keyboard and Mouse

OS: Windows 8.1 64-bit

Intel Chipset Z170 Block Diagram

Z170 Platform

Intel Z170 adalah chipset unggulan untuk platform PC desktop kelas mainstream terbaru Intel. Motherboard dengan chipset tersebut mendukung prosesor Intel generasi keenam, Skylake, mulai dari prosesor Intel Skylake seri Pentium, Core i3, Core i5, hingga seri unggulannya, Core i7. Chipset ini juga mengalami sejumlah perkembangan dari segi fitur. Kini motherboard dengan Chipset Intel Z170 mengusung sejumlah fitur, seperti; 20 jalur PCI Express 3.0, dual channel memori DDR3L hingga 1600MHz/DDR4 hingga 2133MHz, 6 port SATA III 6Gbps, 10 port USB 3.0, 14 port USB 2.0, dan dukungan tuning untuk komponen prosesor dan juga memori.

CPU
  1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel®Celeron® processors in the LGA1151 package
  2. L3 cache varies with CPU

(Please refer “CPU Support List” for more information.)

Chipset
  1. Intel® Z170 Express Chipset
Memory
  1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
    * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  2. Dual channel memory architecture
  3. Support forDDR4 3466(O.C.) /3400(O.C.) /3333(O.C.) /3300(O.C.) /3200(O.C.) /3000(O.C.) /2800(O.C.) /2666(O.C.) /2400(O.C.) /2133 MHz memory modules
  4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules

(Please refer “Memory Support List” for more information.)

Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:

  1. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
    * Support for DisplayPort 1.2 version.
  2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@24 Hz
    * Support for HDMI 1.4 version.
  3. Maximum shared memory of 512 MB
Audio
  1. Realtek® ALC1150 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
LAN
  1. 1 x Intel® GbE LAN chip (10/100/1000 Mbit)(LAN1)
  2. 1 x Killer E2201 chip (10/100/1000 Mbit) (LAN2)
    * Teaming is not supported.
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode
  3. .1 x PCI Express x16 slot, running at x4 (PCIEX4)
    * The PCIEX4 slot shares bandwidth with the M2H_32G connector. The PCIEX4 slot will become unavailable when an SSD is installed in the M2H_32G connector.
  4. 4 x PCI Express x1 slots
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Storage Interface Chipset:

  1. 2 x M.2 Socket 3 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA & PCIe x4/x2/x1 SSD support)
  2. 3 x SATA Express connectors
  3. 6 x SATA 6Gb/s connectors
  4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to “1-7 Internal Connectors,” for the supported configurations with the M.2, SATA Express, and SATA connectors.
USB Chipset:

  1. 7 x USB 3.0/2.0 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
  2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Chipset+GENESYS LOGIC USB 2.0 Hub:

  1. 2 x USB 2.0/1.1 ports (available through the internal USB header)

Chipset+Intel® USB 3.1 Controller:

  1. 1 x USB Type-C™ port on the back panel, with USB 3.1 support
  2. 1x USB 3.1 Type-A port (red) on the back panel
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 2 x M.2 Socket 3 connectors
  4. 3 x SATA Express connectors
  5. 6 x SATA 6Gb/s connectors
  6. 1 x CPU fan header
  7. 1 x water cooling fan header (CPU_OPT)
  8. 3 x system fan headers
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 2 x USB 3.0/2.0 headers
  12. 2 x USB 2.0/1.1 headers
  13. 1 x Trusted Platform Module (TPM) header
  14. 1 x Thunderbolt™ add-in card connector
  15. 1 x serial port header
  16. 1 x Clear CMOS jumper
  17. 1 x ECO button
  18. 1 x OC button
  19. 1 x audio gain control switch
Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x DisplayPort
  3. 1 x HDMI port
  4. 1 x USB Type-C™ port, with USB 3.1 support
  5. 1 x USB 3.1 Type-A port (red)
  6. 3 x USB 3.0/2.0 ports
  7. 4 x USB 2.0/1.1 ports
  8. 2 x RJ-45 ports
  9. 1 x optical S/PDIF Out connector
  10. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. System voltage detection
  2. CPU/System temperature detection
  3. CPU/System fan speed detection
  4. CPU/System overheating warning
  5. CPU/System fan fail warning
  6. CPU/System fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 2 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    3D OSD
    @BIOS
    AutoGreen
    Cloud Station
    EasyTune
    Easy RAID
    Fast Boot
    Smart TimeLock
    Smart Keyboard
    Smart Backup
    System Information Viewer
    USB Blocker
  2. Support for Q-Flash
  3. Support for Smart Switch
  4. Support for Xpress Install
Bundle Software
  1. Norton Internet Security (OEM version)
  2. Intel® Smart Response Technology
  3. Intel® Wireless Display
Operating System
  1. Support for Windows 10/8.1 64-bit
  2. Support for Windows 7 32-bit/64-bit
    * Please download the “Windows USB Installation Tool” from GIGABYTE’s website and install it before installing Windows 7.
Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm
Box Contents
  1. GA-Z170X-Gaming 5 motherboard
  2. Four SATA cables
  3. Motherboard driver disk
  4. I/O Shield
  5. User’s Manual
  6. One 2-Way SLI bridge connector
  7. Quick Installation Guide
  8. One G Connector
