Video Review Motherboard ASRock X370 Taichi

Reading time:
April 28, 2017

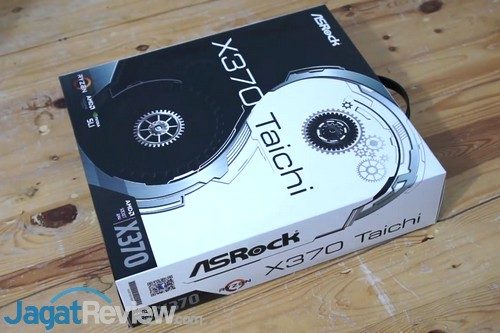

ASRock X370 Taichi - 01

Menyambut hadirnya prosesor AMD Ryzen, ASRock, salah satu produsen motherboard ternama dunia, turut menawarkan produk baru mereka dengan soket AM4 yang mendukung AMD Ryzen. Salah satu produk pendukung AMD Ryzen yang mereka siapkan adalah X370 Taichi. Motherboard ini bisa dikatakan sebagai salah satu unggulan ASRock untuk lini produk motherboard soket AM4 mereka. Penasaran dengan apa saja yang ditawarkan ASRock di motherboard ini?

Spesifikasi

ASRock X370 Taichi - 04

Inilah spesifikasi dari ASRock X370 Taichi sesuai dengan yang ditampilkan di halaman resmi motherboard ini:

[toggles class=”yourcustomclass”]
[toggle title=”Accordion Number 1″ class=”in”]

  • Unique Feature
    ASRock USB 3.1
    – ASRock USB 3.1 Type-A Port (10 Gb/s)
    – ASRock USB 3.1 Type-C Port (10 Gb/s)
    ASRock Super Alloy
    – XXL Aluminum Alloy Heatsink
    – Premium 60A Power Choke
    – Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
    – Dual-Stack MOSFET (DSM)
    – Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
    – I/O Armor
    – Matte Black PCB
    – High Density Glass Fabric PCB
    – 2oz Copper PCB
    Intel® 802.11ac WiFi
    ASRock Steel Slots
    ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
    ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop
  • CPU
    – Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge)
    – IR Digital PWM
    – 16 Power Phase design
    – Supports 300W EX OC
    – Supports ASRock Hyper BCLK Engine II
  • Chipset
    – AMD Promontory X370
  • Memory
    – Dual Channel DDR4 Memory Technology
    – 4 x DDR4 DIMM Slots
    – Supports DDR4 3200+(OC)/2933(OC)/2667/2400/2133 ECC and non-ECC, un-buffered memory*
    – Max. capacity of system memory: 64GB**
    – 15μ Gold Contact in DIMM Slots

    *Please refer to Memory Support List on ASRock’s website for more information.
    Please refer to below table for DDR4 UDIMM maximum frequency support.
    Ryzen Series CPUs:

    UDIMM Memory SlotFrequency(MHZ)
    A1A2B1B2
    SR2667
    DR2667
    SRSR2667
    DRDR2400-2667
    SRSRSRSR2133-2400
    SR/DRDRSR/DRDR1866-2133

    SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label
    DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label

    **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

  • BIOS
    – 128Mb AMI UEFI Legal BIOS with GUI support
    – Supports “Plug and Play”
    – ACPI 5.1 compliance wake up events
    – Supports jumperfree
    – SMBIOS 2.3 support
    – CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, PROM 2.5V, Voltage Multi-adjustment
  • Graphics
    – n/a
  • Audio
    – 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
    – Premium Blu-ray Audio support
    – Supports Surge Protection
    – Supports Purity Sound™ 4
    – Nichicon Fine Gold Series Audio Caps
    – 120dB SNR DAC with Differential Amplifier
    – TI® NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
    – Pure Power-In
    – Direct Drive Technology
    – PCB isolate shielding
    – Impedance Sensing on Line Out port
    – Individual PCB Layers for R/L Audio Channel
    – Gold Audio Jacks
    – 15μ Gold Audio Connector
    – Supports DTS Connect
  • LAN
    – Gigabit LAN 10/100/1000 Mb/s
    – GigaLAN Intel® I211AT
    – Supports Wake-On-LAN
    – Supports Lightning/ESD Protection
    – Supports Energy Efficient Ethernet 802.3az
    – Supports PXE
  • Wireless LAN
    – Intel® 802.11ac WiFi Module (Free Bundle)
    – Supports IEEE 802.11a/b/g/n/ac
    – Supports Dual-Band (2.4/5 GHz)
    – Supports high speed wireless connections up to 433Mbps
    – Supports Bluetooth 4.2 / 3.0 + High speed class II
  • Slots
    – 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE3))*
    – 1 x PCI Express 2.0 x16 Slot (PCIE5 @ x4 mode)**
    – 2 x PCI Express 2.0 x1 Slots
    – Supports AMD Quad CrossFireX™ and CrossFireX™
    – Supports NVIDIA® Quad SLI™ and SLI™
    – 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)
    – 15μ Gold Contact in VGA PCIe Slot (PCIE2)

    *Supports NVMe SSD as boot disks

    **If PCIE5 slot is occupied, M2_2 will be disabled

  • Storage
    – 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
    – 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
    – 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
    – 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen2 x4 (20 Gb/s)*

    *If M2_2 is occupied, PCIE5 slot will be disabled
    Supports NVMe SSD as boot disks
    Supports ASRock U.2 Kit
  • Connector
    – 1 x Power LED and Speaker Header
    – 1 x AMD Fan LED Header
    – 2 x RGB LED Headers*
    – 1 x CPU Fan Connector (4-pin)**
    – 1 x CPU Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
    – 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)****
    – 1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
    – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
    – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
    – 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
    – 1 x AMD LED Fan USB Header
    – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
    – 2 x USB 3.0 Headers (Support 4 USB 3.0 ports) (Supports ESD Protection)
    – 1 x Dr. Debug with LED

    *Supports up to 12V/3A, 36W LED Strip
    **The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
    ***The CPU Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.
    ****The Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.
    *****CPU_FAN1, CHA_FAN1, CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.
  • Rear Panel I/O
    – 2 x Antenna Ports
    – 1 x PS/2 Mouse/Keyboard Port
    – 1 x Optical SPDIF Out Port
    – 1 x USB 3.1 Type-A Port (10 Gb/s) (Supports ESD Protection)
    – 1 x USB 3.1 Type-C Port (10 Gb/s) (Supports ESD Protection)
    – 6 x USB 3.0 Ports (Supports ESD Protection)
    – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    – 1 x Clear CMOS Switch
    – HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
  • Software and UEFI
    Software
    – ASRock A-Tuning
    – ASRock RGB LED
    – ASRock APP Charger
    – ASRock XFast LAN*
    UEFI
    – ASRock Full HD UEFI
    – ASRock Instant Flash
    – ASRock Internet Flash
    – ASRock Crashless BIOS
    – ASRock Easy RAID Installer

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Support CD
    – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
  • Accessories
    – Quick Installation Guide, Support CD, I/O Shield
    – 4 x SATA Data Cables
    – 1 x ASRock SLI_HB_Bridge_2S Card
    – 2 x ASRock WiFi 2.4/5 GHz Antennas
    – 2 x Screws for M.2 Sockets
  • Hardware Monitor
    – Temperature Sensing: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
    – Fan Tachometer: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
    – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
    – Fan Multi-Speed Control: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
    – Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, VCORE_NB, DRAM, PCH 1.05V, +1.8V, VDDP
  • Form Factor
    – ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
  • OS
    – Microsoft® Windows® 10 64-bit*

    *For the updated Windows® 10 driver, please visit ASRock’s website for details.
  • Certifications
    – FCC, CE
    – ErP/EuP ready (ErP/EuP ready power supply is required)

[/toggle]
[/toggles]

Platform Pengujian

ASRock X370 Taichi - 03

Spesifikasi PC yang digunakan:

  • Prosesor: AMD Ryzen 7 1700
  • Motherboard: ASRock X370 Taichi
  • RAM: Kingston DDR4-3466 2x 4 GB
  • SSD NVMe: Samsung 950 Pro 240 GB
  • PSU: Enermax Triathlor Eco 800W
  • Benchtable: Streacom Open Benchtable
  • HSF: AMD Wraith Max

Video Review

Berikut ini video review kami untuk motherboard tersebut:
