Review Gigabyte Z68XP-UD3-iSSD:Kombinasi Z68 Dengan iSSD Paling Murah

Reading time:
August 16, 2011

iSSD atau Integrated SSD merupakan komponen penting dari SSD caching. SSD caching sendiri merupakan istilah yang sering diasosiasikan dengan chipset Z68. Istilah ini pasti terdengar rumit di telinga Anda. Mungkin Anda sengaja menghindari fitur ini karena biaya yang terhubung dengan istilah tersebut. Gigabyte berusaha membantu Anda dengan memperkenalkan motherboard terbarunya yaitu Z68XP-UD3-iSSD. Motherboard ini adalah satu-satunya produk dengan teknologi SSD yang terintegrasi di dunia. Lalu bagaimana dengan performanya? Mari sama-sama kita lihat dalam review berikut ini!

Intel Smart Response Technology (ISRT) merupakan salah satu fungsi utama dari chipset Z68 dari Intel. Teknologi ini mengharuskan hadirnya sebuah SSD sebagai cache drive. Fitur ISRT biasanya terabaikan oleh pengguna. Hal tersebut dapat terjadi karena pengguna awam biasanya tidak mau mengeluarkan biaya tambahan untuk membeli produk SSD lagi. Produk Gigabyte Z68XP-UD3-iSSD ini menjadi jawaban dari permasalah tersebut. Gigabyte menyediakan sebuah perangkat SSD langsung di dalam paket penjualannya! Dengan kata lain, pembeli motherboard ini dapat langsung menggunakan teknologi ISRT!

Gigabyte menghadirkan solusi yang tepat agar fitur ISRT ini dapat digunakan secara optimal dengan mengintegrasikan sebuah SSD kedalam sebuah motherboard Z68-nya. SSD yang diintergrasikan pun bukan drive sembarangan. SSD yang ditanam ke dalam motherboard ini adalah drive berbasis Intel Larsen Creek yang notabene merupakan SSD yang memang dioptimalkan sebagai cache.

GigabyteZ68XP UD3 iSSD Board CoolingOverview2

Lalu bagaimana performa dari Integrated SSD (iSSD)? Silahkan lanjutkan membaca.

Spesifikasi

[spoiler effect=”slide” show=”Buka Spesifikasi” hide=”Tutup Spesifikasi”]

CPU
  1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
  2. L3 cache varies with CPU

(Please refer “CPU Support List” for more information.)

Chipset
  1. Intel® Z68 Express Chipset
Memory
  1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
    * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
  2. Dual channel memory architecture
  3. Support for DDR3 2133/1866/1600/1333/1066 MHz memory modules
  4. Support for non-ECC memory modules
  5. Support for Extreme Memory Profile (XMP) memory modules

(Please refer “Memory Support List” for more information.)

Onboard GraphicsIntegrated in the Chipset:

  1. 1 x HDMI port, supporting a maximum resolution of 1920×1200
Audio
  1. Realtek ALC889 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for Dolby® Home Theater
  5. Support for S/PDIF Out
LAN
  1. 1 x Realtek RTL8111E chip (10/100/1000 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.
  3. 3 x PCI Express x1 slots
    (All PCI Express slots conform to PCI Express 2.0 standard.)
  4. 2 x PCI slots
Multi-Graphics Technology
  1. Support for AMD CrossFireX™ / NVIDIA SLI technology
    * The PCIEX16 slot operates at up to x8 mode when AMD CrossFireX™/NVIDIA SLI is enabled.
Storage InterfaceChipset:

  1. 2 x SATA 6Gb/s connectors (SATA3_0~SATA3_1) supporting up to 2 SATA 6Gb/s devices
  2. 4 x SATA 3Gb/s connectors (SATA2_2~SATA2_5) supporting up to 4 SATA 3Gb/s devices
    * The SATA2_5 connector will become unavailable when the mSATA connector is installed with a solid state drive.
  3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.

1 x Marvell 88SE9172 chip:

  1. 2 x SATA 6Gb/s connectors (GSATA3_6, GSATA3_7) supporting up to 2 SATA 6Gb/s devices
  2. Support for SATA RAID 0 and RAID 1
USBChipset:

  1. Up to 14 USB 2.0/1.1 ports (8 ports on the back panel, 6 ports available through the internal USB headers)

2 x Etron EJ168 chips:

  1. Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
IEEE 1394VIA VT6308 chip:

  1. Up to 2 IEEE 1394a ports (1 port on the back panel, 1 port available through the internal IEEE 1394a header)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 4 x SATA 6Gb/s connectors
  4. 4 x SATA 3Gb/s connectors
  5. 1 x mSATA connector + SSD 20 GB
  6. 1 x CPU fan header
  7. 2 x system fan headers
  8. 1 x power fan header
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x S/PDIF Out header
  12. 3 x USB 2.0/1.1 headers
  13. 1 x USB 3.0/2.0 header
  14. 1 x IEEE 1394a header
  15. 1 x serial port header
  16. 1 x clearing CMOS jumper
  17. 1 x Trusted Platform Module (TPM) header
Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x HDMI port
  3. 1 x optical S/PDIF Out connector
  4. 1 x IEEE 1394 port
  5. 8 x USB 2.0/1.1 ports
  6. 2 x USB 3.0/2.0 ports
  7. 1 x RJ-45 port
  8. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
I/O Controller
  1. iTE IT8728 chip
H/W Monitoring
  1. System voltage detection
  2. CPU/System temperature detection
  3. CPU/System/Power fan speed detection
  4. CPU overheating warning
  5. CPU/System/Power fan fail warning
  6. CPU/System fan speed control
    * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
BIOS
  1. 2 x 32 Mbit flash
  2. Use of licensed AWARD BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features
  1. Support for @BIOS
  2. Support for Q-Flash
  3. Support for Xpress BIOS Rescue
  4. Support for Download Center
  5. Support for Xpress Install
  6. Support for Xpress Recovery2
  7. Support for EasyTune
    * Available functions in EasyTune may differ by motherboard model.
  8. Support for Dynamic Energy Saver™ 2
  9. Support for Smart 6™
  10. Support for Auto Green
  11. Support for eXtreme Hard Drive (X.H.D)
  12. Support for ON/OFF Charge
  13. Support for Cloud OC
  14. Support for 3TB+ Unlock
  15. Support for TouchBIOS
  16. Support for Q-Share
Bundle Software
  1. Norton Internet Security (OEM version)
  2. Intel® Smart Response Technology
  3. LucidLogix Virtu
    * Make sure the monitor cable has been connected to the integrated graphics port on the back panel.
Operating System
  1. Support for Microsoft® Windows® 7/Vista/XP
Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm

[/spoiler]

Kemasan dan Paket Penjualan

GigabyteZ68XP UD3

Huruf Z besar terpampang di bagian depan kemasan motherboard ini. Memang tindakan terlihat tersebut terlalu berlebihan, tetapi bukankah kemasan motherboard selalu terlihat seperti itu?

GigabyteZ68XP UD3

Inilah yang membuat motherboard ini istimewa. Motherboard ini telah dilengkapi dengan sebuah SSD SLC dari Intel .

GigabyteZ68XP UD3

Bagian belakang kemasan sebuah motherboard tak pernah luput dari “pameran” fitur yang diadopsinya.

GigabyteZ68XP UD3 iSSD Perlengkapan

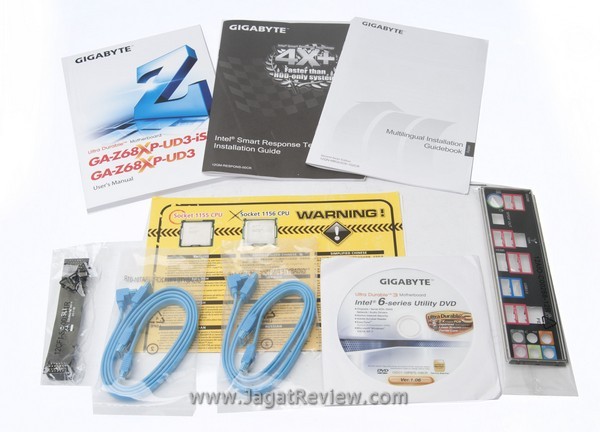

Perlengkapan yang disertakan dalam paket penjualan motherboard ini bisa dikatakan standar. Perbedaannya adalah disertakan sebuah manual book khusus untuk menjelaskan penggunaan ISRT. Langkah ini patut diacungi jempol karena fitur baru dari chipset Z68 ini memang sesuatu yang asing bagi pengguna awam. Dengan adanya manual book khusus ISRT ini maka pengguna awam dapat dipandu bagaimana cara untuk mengaktifkan fitur ini dengan mudah.
