Memburu motherboard murah dengan chipset Intel Z77 memang membutuhkan kejelian tersendiri. Hal ini memang tidak aneh karena terkadang di level harga tertentu pengguna dapat menemukan beragam pilihan motherboard dari beberapa produsen. Apa yang ditawarkan produsen satu dan produsen lainnya akan berbeda-beda, meskipun feature standar chipset Intel Z77 dapat ditemukan di semua motherboard yang menggunakan chipset tersebut.

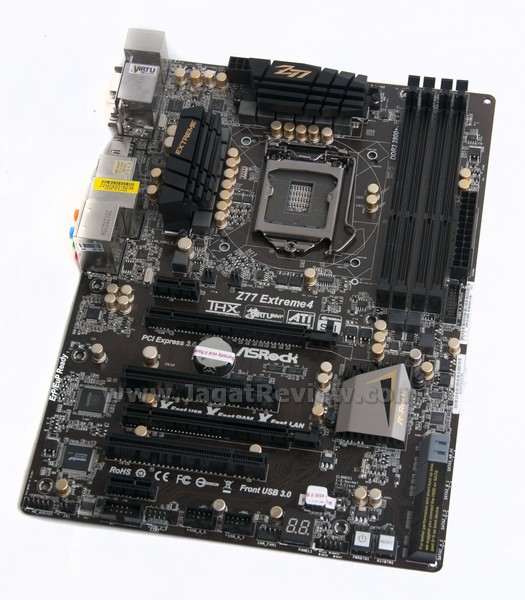

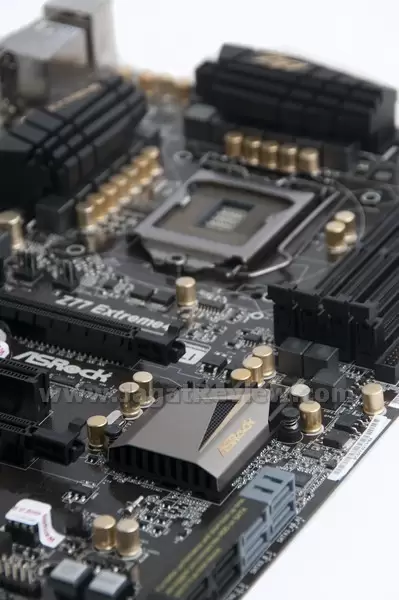

Salah satu produsen motherboard yang mencoba menawarkan motherboard murah dengan chipset Intel Z77 adalah ASRock dengan salah satu produknya Z77 Extreme4. Motherboard seri Extreme dapat dikatakan sebagai motherboard kelas atas dari ASRock dengan feature lebih lengkap dibandingkan seri lainnya. Meskipun begitu, Z77 Extreme4 merupakan tipe paling murah dari lini motherboard “Z77 Extreme” dengan faktor bentuk ATX. Dengan kisaran harga jual 1,6 juta rupiah, produk ini sepertinya ingin menyasar pengguna dengan budget terbatas tetapi menginginkan motherboard chipset Intel Z77 dengan feature lengkap di kelas harga tersebut.

Penasaran dengan apa saja yang akan didapatkan di motherboard chipset Intel Z77 dengan harga seperti itu? Apakah akan mengecewakan? Simak ulasan lengkapnya berikut ini.

Chipset Intel Z77

intel ivy bridge chipset z77

Spesifikasi

General
CPU	– Supports 3rd and 2nd Generation Intel^® Core™ i7 / i5 / i3 in LGA1155 Package – Digi Power Design – 8 + 4 Power Phase Design – Supports Intel^® Turbo Boost 2.0 Technology – Supports Intel^® K-Series unlocked CPU – Supports Hyper-Threading Technology
Chipset	– Intel^® Z77 – Supports Intel^® Rapid Start Technology and Smart Connect Technology *Intel^® Rapid Start Technology and Smart Connect Technology are only supported under Windows^® 7 OS or later versions.
Memory	– Dual Channel DDR3 memory technology – 4 x DDR3 DIMM slots – Supports DDR3 2800+(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory – Max. capacity of system memory: 32GB* – Supports Intel^® Extreme Memory Profile (XMP) 1.3 / 1.2 *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS	– 64Mb AMI UEFI Legal BIOS with GUI support – Supports “Plug and Play” – ACPI 1.1 Compliance Wake Up Events – Supports jumperfree – SMBIOS 2.3.1 Support – CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustment
Audio, Video and Networking
Graphics	– Supports Intel^® HD Graphics Built-in Visuals : Intel^® Quick Sync Video 2.0, Intel^® InTru™ 3D, Intel^® Clear Video HD Technology, Intel^® Insider™, Intel^® HD Graphics 2500/4000 – Pixel Shader 5.0, DirectX 11 with Intel^® Ivy Bridge CPU. Pixel Shader 4.1, DirectX 10.1 with Intel^® Sandy Bridge CPU. – Max. shared memory 1760MB – Multi VGA Output options: D-Sub, DVI-D and HDMI – Supports HDMI 1.4a Technology with max. resolution up to 1920×1200 @ 60Hz – Supports DVI with max. resolution up to 1920×1200 @ 60Hz – Supports D-Sub with max. resolution up to 2048×1536 @ 75Hz – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required) – Supports HDCP function with DVI and HDMI ports – Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI and HDMI ports Intel^® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.Due to chipset limitation, the Blu-ray playback of Intel^® HD Graphics is only supported under Windows^® Vista™ and Windows^® 7.**Intel^® InTru™ 3D is only supported under Windows^® 7 and Windows^® 7 x64.
Audio	– 7.1 CH HD Audio with Content Protection (Realtek ALC898 Audio Codec) – Premium Blu-ray audio support – Supports THX TruStudio™
LAN	– PCIE x1 Gigabit LAN 10/100/1000 Mb/s – Broadcom BCM57781 – Supports Wake-On-LAN – Supports Energy Efficient Ethernet 802.3az – Supports PXE
Expansion / Connectivity
Slots	– 2 x PCI Express 3.0 x16 slots (PCIE2/PCIE3: single at x16 (PCIE2) / x8 (PCIE3) or dual at x8/x8 mode) – 2 x PCI Express 2.0 x1 slots – 2 x PCI slots – Supports AMD Quad CrossFireX™ and CrossFireX™ – Supports NVIDIA^® Quad SLI™ and SLI™ *PCIe Gen3 is supported on 3rd Generation of Intel^® Core™ i5 and Core™ i7 CPUs.
SATA3	– 2 x SATA3 6.0 Gb/s connectors by Intel^® Z77, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel^® Rapid Storage and Intel^® Smart Response Technology), NCQ, AHCI and “Hot Plug” functions – 2 x SATA3 6.0 Gb/s connectors by ASMedia ASM1061, support NCQ, AHCI and “Hot Plug” functions (SATA3_A1 connector is shared with eSATA3 port)
USB 3.0	– 2 x Rear USB 3.0 ports by Intel^® Z77, support USB 1.0/2.0/3.0 up to 5Gb/s – 2 x Rear USB 3.0 ports by ASMedia ASM1042, support USB 1.0/2.0/3.0 up to 5Gb/s – 1 x Front USB 3.0 header by Intel^® Z77 (supports 2 USB 3.0 ports), supports USB 1.0/2.0/3.0 up to 5Gb/s
Connector	– 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel^® Rapid Storage and Intel^® Smart Response Technology), NCQ, AHCI and Hot Plug functions – 4 x SATA3 6.0 Gb/s connectors – 1 x IR header – 1 x CIR header – 1 x COM port header – 1 x HDMI_SPDIF header – 1 x Power LED header – 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin) – 3 x Chassis Fan connectors (1 x 4-pin, 2 x 3-pin) – 1 x Power Fan connector (3-pin) – 24 pin ATX power connector – 8 pin 12V power connector – Front panel audio connector – 3 x USB 2.0 headers (support 6 USB 2.0 ports) – 1 x USB 3.0 header (supports 2 USB 3.0 ports) – 1 x Dr. Debug with LED – 1 x Power Switch with LED – 1 x Reset Switch with LED – 1 x Clear CMOS Switch with LED
Rear Panel I/O	I/O Panel – 1 x PS/2 Keyboard/Mouse Port – 1 x D-Sub Port – 1 x DVI-D Port – 1 x HDMI Port – 1 x Optical SPDIF Out Port – 2 x Ready-to-Use USB 2.0 Ports – 1 x eSATA3 Connector – 4 x Ready-to-Use USB 3.0 Ports – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – 1 x Clear CMOS Switch with LED – HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Unique Feature	– ASRock Extreme Tuning Utility (AXTU) – ASRock Instant Boot – ASRock Instant Flash – ASRock APP Charger – ASRock SmartView – ASRock XFast USB – ASRock XFast LAN – ASRock XFast RAM – ASRock Crashless BIOS – ASRock OMG (Online Management Guard) – ASRock Internet Flash – ASRock Dehumidifier Function – Lucid Virtu Universal MVP – Hybrid Booster: – CPU Frequency Stepless Control – ASRock U-COP – Boot Failure Guard (B.F.G.) – Combo Cooler Option (C.C.O.) – Good Night LED Lucid Virtu Universal MVP can be supported only with processors which are GPU integrated.*LucidLogix Virtu MVP only supports Windows^® 7 OS or later versions.
Support CD	– Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite – OEM
Accessories	– 1 x ASRock SLI_Bridge_2S Card – Quick Installation Guide, Support CD, I/O Shield – 2 x SATA Data Cables
Hardware Monitor	– CPU Temperature Sensing – Chassis Temperature Sensing – CPU/Chassis/Power Fan Tachometer – CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) – CPU/Chassis Fan Multi-Speed Control – Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor	– ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm – Premium Gold Capacitor design (100% Japan-made high-quality Conductive Polymer Capacitors)
OS	– Microsoft^® Windows^® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant
Certifications	– FCC, CE, WHQL – ErP/EuP Ready (ErP/EuP ready power supply is required)
