Review ASUS Z87-Deluxe: Motherboard Haswell Kelas Atas dengan Tema Warna Emas

Reading time:
September 5, 2013

Platform kelas mainstream Intel kembali diregenasi pada pertengahan tahun lalu. Dengan menggabungkan prosesor Core i “Haswell” generasi empat dan motherboard chipset seri 8 dengan soket LGA1150, platform ini siap menjadi incaran pengguna baik pengguna biasa, gamer, maupun overclocker. Hadirnya platform generasi terbaru ini juga menjadi ajang unjuk gigi produsen motherboard untuk memamerkan teknologi terbaru mereka. Sejauh ini kami menjumpai banyak sekali teknologi dan feature terbaru diaplikasikan di motherboard Intel Haswell yang tidak, atau jarang ditemukan pada generasi sebelumnya.

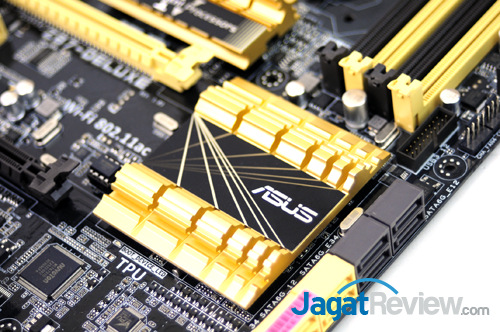

asus z87-deluxe heatsink

Z87-Deluxe kreasi ASUS ini merupakan salah satu motherboard Intel Haswell dengan setumpuk teknologi dan feature baru di dalamnya. Dalam hirarki produk ASUS, Z87-Deluxe merupakan kasta tertinggi dari lini motherboard Intel Z87 di luar seri ROG dan TUF. Tentu saja kami mengharapkan motherboard ini mampu tampil maksimal dengan segala perlengkapan di dalamnya. ASUS menawarkan Z87-Deluxe dalam 2 varian yaitu varian dengan Thunderbolt dan non-Thunderbolt. Untuk artikel kali ini kami akan membahas varian Z87-Deluxe tanpa feature Thunderbolt dan inilah ulasan lengkapnya.

Intel Z87

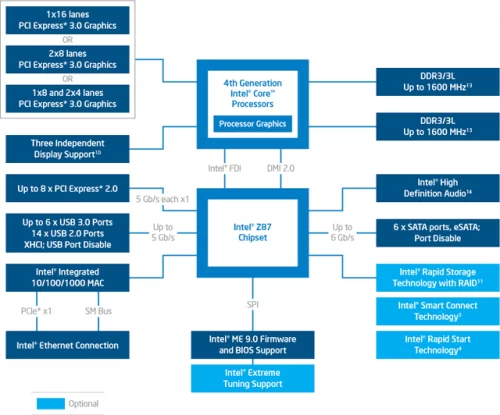

intel core i gen 4 haswell chipset z87

Spesifikasi

CPU

Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
Chipset

Intel® Z87
Memory

4 x DIMM, Max. 32GB, DDR3 3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2500(O.C.)/2400(O.C.) MHz Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Graphic

Integrated Graphics Processor
Multi-VGA output support : HDMI/DisplayPort 1.2 /Mini DisplayPort ports *1
– Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
– Supports Mini DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports up to 3 displays simultaneously
Multi-GPU Support

Supports NVIDIA® Quad-GPU SLI™ Technology *2
Supports AMD Quad-GPU CrossFireX™ Technology
Supports AMD 3-Way CrossFireX™ Technology
Expansion Slots

2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
1 x PCIe 2.0 x16 (x4 mode)
4 x PCIe 2.0 x1
Storage

Intel® Z87 chipset :
6 x SATA 6Gb/s port(s), yellow
Support Raid 0, 1, 5, 10
Supports Intel® Dynamic Storage Accelerator, Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology*3
ASMedia® ASM1061 controller : *4
4 x SATA 6Gb/s port(s), dark brown
LAN

Intel® I217V, 1 x Gigabit LAN Controller(s)
Realtek® 8111GR, 1 x Gigabit LAN Controller(s)
Dual Gigabit LAN controllers- 802.3az Energy Efficient Ethernet (EEE) appliance
Intel® LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)
Wireless Data Network

Wi-Fi 802.11a/b/g/n/ac*5
Supports dual band frequency 2.4/5 GHz
Bluetooth

Bluetooth V4.0
Bluetooth V3.0+HS
Audio

Realtek® ALC1150 8-Channel High Definition Audio CODEC
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR recording input (Line-in)
Audio Feature :
– Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
– Blu-ray audio layer Content Protection
– DTS Ultra PC II
– DTS Connect
– Optical S/PDIF out port(s) at back panel
USB Ports

Intel® Z87 chipset :
4 x USB 3.0/2.0 port(s)
Intel® Z87 chipset :
8 x USB 2.0/1.1 port(s) (4 at back panel, black, 4 at mid-board)
ASMedia® USB 3.0 controller :
4 x USB 3.0/2.0 port(s) (4 at back panel, blue)
Special Features

ASUS Dual Intelligent Processors 4 with 4-Way Optimization :
– The tuning key perfectly consolidates ASUS-exclusive DIGI+ Power Control, TPU, EPU, and Fan Xpert 2 optimize the digital power setting, system performance, power saving and whole system cooling configuration
ASUS 5X Protection :
– ASUS DIGI+ VRM – 16 Phase digital power design
– ASUS Enhanced DRAM Overcurrent Protection – Short circuit damage prevention
– ASUS ESD Guards – Enhanced ESD protection
– ASUS High-Quality 5K-Hour Solid Capacitors – 2.5x long lifespan with excellent durability
– ASUS Stainless Steel Back I/O – 3x more durable corrosion-resistant coating
ASUS EPU :
– EPU
– EPU switch
ASUS Digital Power Design :
– Industry leading Digital 16 Phase CPU Power Design
– Industry leading Digital 2 Phase DRAM Power Design
– ASUS DIGI+ VRM Utility
– CPU Power Utility
– DRAM Power Utility
ASUS Wi-Fi GO!
– Wi-Fi GO! Function: Media Streaming Hub, Smart Motion Control, Remote Desktop, Remote Keyboard & Mouse, File Transfer, Capture & Send
– Wi-Fi Engine for network sharing and connection: Client Mode, AP Mode
– Wi-Fi GO! & NFC Remote for portable Smartphone/Tablet, supporting iOS & Android systems
ASUS Exclusive Features :
– USB BIOS Flashback
– MemOK!
– AI Suite 3
– Ai Charger+
– USB Charger+
– Anti-Surge
– Onboard Button : Power/Reset
– Front Panel USB 3.0 Support
– ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
– Network iControl
– USB 3.0 Boost
– Disk Unlocker
ASUS Quiet Thermal Solution :
– Stylish Fanless Design Heat-pipe solution
– ASUS Fan Xpert 2
ASUS EZ DIY :
– DirectKey
– Precision Tweaker 2
– ASUS O.C. Profile
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 2
– Multi-language BIOS
ASUS Q-Design :
– ASUS Q-Shield
– ASUS Q-Code
– ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
– ASUS Q-Slot
– ASUS Q-DIMM
– ASUS Q-Connector
100% All High-quality Conductive Polymer Capacitors
Overclocking Protection :
– ASUS C.P.R.(CPU Parameter Recall)
Operating System Support

Windows® 8
Windows® 7
Back I/O Ports

1 x DisplayPort
1 x HDMI
2 x LAN (RJ45) port(s)
6 x USB 3.0 (blue)
1 x Optical S/PDIF out
1 x Bluetooth V4.0 connector(s) for ASUS Wi-Fi GO! card
1 x USB BIOS Flashback Button(s)
1 x Mini DisplayPort(s)
Internal I/O Ports

1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x TPM header
10 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
4 x Chassis Fan connector(s) (4 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x DirectKey Button(s)
1 x DRCT header(s)
1 x MemOK! button(s)
1 x TPU switch(es)
1 x EPU switch(es)
1 x Power-on button(s)
1 x Reset button(s)
1 x Clear CMOS button(s)
BIOS

64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI 5.0, Multi-language BIOS,
ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability

WfM 2.0, DMI 2.7, WOL by PME, PXE
Support Disc

Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)
Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Platform Pengujian ASUS Z87-Deluxe

  • Prosesor: Core i7 4770K
  • Motherboard: ASUS Z87-Deluxe
  • Graphics Card: GeForce GTX 680
geforce gtx 680
  • Memory:  2x 4GB Kingston HyperX Genesis (XMP Profile Run @1600 MHz)
hx prodimg genesis4 kingston hyperx ssd
  • Flash Drive: Kingston DataTraveler HyperX 3.0

prodDT HX img

  • Power Supply: Corsair AX850

ax850 angled 1

  • CPU Heatsink: Corsair H80

h80 rad fans

  • Monitor: LCD Monitor 1920×1080
  • Input: Generic Keyboard and Mouse
  • OS: Windows 7 Ultimate 64-bit SP1
