Review ASUS Maximus VII Ranger: Republic Of Gamers Murah Untuk PC Generasi Baru

Reading time:
December 3, 2014

Siapa menyangka, dalam beberapa tahun belakangan ini, semakin banyak produsen komponen PC menawarkan produk “Gaming” mereka. Walaupun memiliki harga lebih tinggi, produk “Gaming” untuk komponen PC ternyata mampu memikat sejumlah kalangan pengguna PC, terlebih kalangan gamer, untuk memilikinya. Umumnya, produk “Gaming” untuk komponen PC telah mengalami proses optimalisasi sehingga produk tersebut mampu memaksimalkan pengalaman penggunanya pada saat bermain game. Tidak sampai disitu saja, produk “Gaming” tersebut umumnya telah dilengkapi oleh komponen dengan kualitas di atas rata-rata untuk memastikan produk tersebut “tahan banting” selama penggunaan.

asus maximus vii ranger board 01

Produk “Gaming” untuk komponen PC biasanya identik dengan graphics card. Walaupun begitu, produsen ternyata mampu melebarkan sayap produk “Gaming” hingga ke komponen PC lainnya seperti motherboard. Motherboard “Gaming” umumnya memiliki ciri khas seperti memiliki dukungan multi-graphics card, memiliki fitu auto overclocking, menggunakan chip audio beserta chip networking khusus, dan masih banyak lagi.

Hadirnya chipset Intel seri 9 beberapa waktu lalu tentu saja akan dibarengi dengan membanjirnya produk motherboard “Gaming” di pasaran. ASUS merupakan salah satu produsen komponen PC yang langsung membanjiri pasaran motherboard dengan seri Republic Of Gamers terbarunya yaitu Maximus VII. Tidak tanggung-tanggung, ASUS melemparkan lima model motherboard Maximus VII ke pasaran dan untuk pengguna dengan dana tidak terlampau besar tetapi ingin menikmati kemampuan seri motherboard tersebut, ASUS Maximus VII Ranger adalah jawabannya. Seperti apa kemampuan dan fitur yang ditawarkan oleh motherboard Maximus VII paling murah tersebut? Simak ulasan lengkapnya berikut ini.

Platform Pengujian ASUS Maximus VII Ranger

  • Prosesor: Core i7 4790K
  • Motherboard: ASUS Maximus VII Ranger (Intel Z97)
  • Memory: 8GB DDR3 2400 MHz (Dual Channel)
  • Graphics Card:  NVIDIA GeForce GTX 970
  • Storage: Kingston HyperX 3K SSD
kingston hyperx 3k
  • Power Supply: Corsair AX850
corsair ax850
  • CPU Heatsink: Corsair H80
corsair h80
  • Monitor: LCD Monitor 1920×1080
  • Input: Generic Keyboard and Mouse
  • OS: Windows 7 Ultimate 64-bit SP1

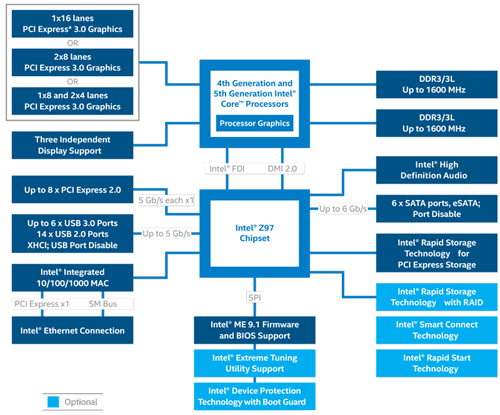

Intel Z97 Chipset Block Diagram

intel z97 chipset

Intel Z97 merupakan chipset kelas high end untuk platform PC desktop kelas mainstream. Motherboard dengan chipset tersebut mendukung prosesor Intel Haswell, Haswell Refresh, dan juga Broadwell yang akan hadir di masa depan. Sejumlah fitur standar yang dapat ditemukan pada motherboard chipset Intel Z97 adalah 16 jalur PCI Express 3.0, dual channel memori DDR3/L, 6 port SATA III 6Gbps, 6 port USB 3.0, 14 port USB 2.0, 8 jalur PCI Express 2.0, dan dukungan tuning untuk komponen prosesor dan juga memori.

Spesifikasi

CPU

  • Intel® Socket 1150 for the 5th/New 4th/4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  • Supports Intel® 22 nm CPU
  • Supports Intel® Turbo Boost Technology 2.0

Chipset

  • Intel® Z97

Memory

  • 4x DIMM, Max. 32GB,DDR3 3200(O.C.)/3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2500(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory *
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)

Graphic

  • Integrated Graphics Processor

Multi-VGA output support: HDMI/DVI-D/RGB ports

  • Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
  • Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
  • Supports RGB with max. resolution 1920 x 1200 @ 60 Hz

Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Multi-GPU Support

  • Supports NVIDIA® Quad-GPU SLI™ Technology
  • Supports AMD Quad-GPU CrossFireX™ Technology

Expansion Slots

  • 2 x PCIe 3.0/2.0 x16 (x16 or dual x8, red)
  • 1 x PCIe 2.0 x16 (x4 mode, black) *1
  • 3 x PCIe 2.0 x1

Storage

Intel® Z97 chipset:

  • 1x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (PCIE mode)
  • 6x SATA 6Gb/s port(s), red, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
  • Support Raid 0, 1, 5, 10
  • Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology

LAN

  • Intel® I218V, 1 x Gigabit LAN Controller(s)

Audio

ROG SupremeFX 8-Channel High Definition Audio CODEC

  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • SupremeFX Shielding Technology
  • ELNA® premium audio capacitors

Audio Feature:

  • DTS Connect
  • Optical S/PDIF out port(s) at back panel
  • Sonic SoundStage
  • Sonic SenseAmp
  • Sonic Studio
  • Sonic Radar II

USB Ports

Intel® Z97 chipset:

  • 6x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board)
  • 7x USB 2.0 port(s) (2 at back panel, , 5 at mid-board)

ROG Exclusive Features

Extreme Engine Digi+ III:

  • NexFET™ Power Block MOSFET
  • New Alloy Chokes
  • 10K Black Metallic Capacitors

KeyBot

  • CPU Level Up
  • XMP
  • Direct Key

ROG RAMDisk

GameFirst III

Extreme Tweaker

Special Features

ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5:

  • Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 2, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.

ASUS Exclusive Features:

  • AI Suite 3
  • Ai Charger
  • USB Charger+
  • USB 3.0 Boost
  • Disk Unlocker

ASUS EZ DIY:

  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 2
  • ASUS USB BIOS Flashback
  • Push Notice

ASUS Q-Design:

  • ASUS Q-Shield
  • ASUS Q-Code
  • ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
  • ASUS Q-Slot
  • ASUS Q-DIMM
  • ASUS Q-Connector

Overclocking Protection:

  • ASUS C.P.R.(CPU Parameter Recall)

Operating System Support

  • Windows® 8.1
  • Windows® 8
  • Windows® 7

Back I/O Ports

  • 1x PS/2 keyboard/mouse combo port(s)
  • 1x DVI-D
  • 1x D-Sub
  • 1x HDMI
  • 1x LAN (RJ45) port(s)
  • 4x USB 3.0 (blue)
  • 2x USB 2.0
  • 1x Optical S/PDIF out
  • 6x Audio jack(s)
  • 1x USB BIOS Flashback Button(s)

Internal I/O Ports

  • 1x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
  • 3x USB 2.0 connector(s) support(s) additional 5 USB 2.0 port(s)
  • 1x TPM connector(s)
  • 6x SATA 6Gb/s connector(s)
  • 1x CPU Fan connector(s) (1 x 4 -pin)
  • 1x CPU OPT Fan connector(s) (1 x 4 -pin)
  • 3x Chassis Fan connector(s) (3 x 4 -pin)
  • 1x 24-pin EATX Power connector(s)
  • 1x 8-pin ATX 12V Power connector(s)
  • 1x Front panel audio connector(s) (AAFP)
  • 1x System panel(s)
  • 1x MemOK! button(s)
  • 1x Thermal sensor connector(s)
  • 1x Power-on button(s)
  • 1x Reset button(s)
  • 1x Clear CMOS jumper(s)
  • 1x ROG extension (ROG_EXT) header(s)
  • 1x KeyBot Button
  • 1x Sonic SoundStage Button

BIOS

  • 64Mb UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI5.0a, Multi-Language BIOS

Form Factor

ATX Form Factor

  • 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
