Review Printer Canon PIXMA MG5770

Reading time:
July 4, 2016

Di awal tahun, Canon telah memperkenalkan sekaligus meresmikan satu lagi printer All-In-One (AIO) terbaru mereka yaitu Canon PIXMA MG5770. Printer AIO ini sendiri dikenalkan sebagai printer yang mampu mencetak dokumen maupun foto tanpa masalah, dengan dilengkapi konektivitas Wireless untuk memudahkan penggunanya supaya tak perlu mengakses komputer lebih dulu untuk terhubung dengan si printer itu sendiri. Dan produk Canon PIXMA MG5770 ini kini telah hadir di kantor JagatReview.com untuk kami uji performanya. Simak dalam artikel review berikut ini!

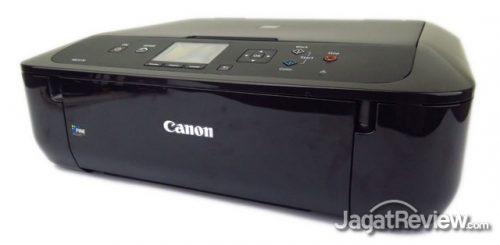

canon pixma mg5770 (9)

Spesifikasi Teknis

Print
Maximum Printing Resolution4800 (horizontal) x 1200 (vertical) dpi
Print Head / InkType:Individual Ink Cartridge
Number of Nozzles:Total 4,096 nozzles
Ink Droplet Size:2pl
Ink Cartridge:PGI-770 (Pigment Black), CLI-771 (Cyan, Magenta, Yellow, Black)
[Optional: PGI-770XL (Pigment Black), CLI-771XL (Cyan, Magenta, Yellow, Black)]
Print Speed
Based on ISO / IEC 24734
Document : Colour
ESAT / Simplex:
Approx. 9.0ipm
Document : B/W
ESAT / Simplex:
Approx. 12.6ipm
Photo (4 x 6″):
PP-201 / Borderless:
Approx. 41secs.
Printable WidthBordered:Up to 203.2mm (8-inch)
Borderless:Up to 216mm (8.5-inch)
Printable AreaBordered Printing:Top / Bottom / Right / Left margin: each 0mm
(Supported Paper Size: A4 / Letter / 4 x 6″ / 5 x 7″ / 8 x 10″)
Bordered Printing:Top margin: 3mm, Bottom margin: 5mm,
Left / Right margin: each 3.4mm (Letter / Legal: Left: 6.4mm, Right: 6.3mm)
Bordered Auto 2-sided printing:Top margin: 5mm, Bottom margin: 5mm,
Left/Right margin: 3.4mm (Letter / Legal: Left: 6.4mm, Right: 6.3mm)
Recommended Printing AreaTop Margin:43.3mm
Bottom Margin:37.4mm
Paper SizeA4, A5, B5, Letter, Legal, 4 x 6″, 5 x 7″, 8 x 10″, Envelopes (DL, COM10), Custom size (width 89 – 215.9mm, length 127 – 355.6mm)
Paper Handling (Front Tray)
(Maximum Number)
Plain PaperA4, A5, B5, Letter = 100, Legal = 10
High Resolution Paper (HR-101N)A4 = 65
Photo Paper Pro Platinum (PT-101)4 x 6″ = 20, A4 = 10
Photo Paper Plus Glossy II (PP-201)4 x 6″ = 20, A4 = 10
Photo Paper Pro Luster(LU-101)A4 = 10
Photo Paper Plus Semi-Gloss (SG-201)4 x 6″ = 20, A4, 8 x 10″ = 10
Glossy Photo Paper “Everyday Use” (GP-601)4 x 6″ = 20, A4 = 10
Glossy Photo Paper “Everyday Use” (GP-508)4 x 6″ = 20, A4 = 10
Matte Photo Paper (MP-101)4 x 6″ = 20, A4 = 10
EnvelopeEuropean DL /US Com. #10 = 5
Support Media for Auto 2-sided printingType:Plain Paper
Size:A4, Letter
Paper WeightFront Tray:Plain Paper: 64 – 105g/m2,
Canon specialty paper: max paper weight: approx. 300g/m2
(Photo Paper Pro Platinum PT-101)
Ink End SensorDot count
Print Head AlignmentManual
Scan
Scanner TypeFlatbed
Scanning MethodCIS (Contact Image Sensor)
Optical Resolution1200 x 2400dpi
Selectable Resolution25 – 19200dpi
Scanning Bit Depth (Input / Output)Grayscale:16 bits / 8 bits
Colour:48 bits / 24 bits (RGB each 16 bits / 8 bits )
Line Scanning SpeedGrayscale:1.2ms/line (300dpi)
Colour:3.5ms/line (300dpi)
Scanning SpeedReflective:
A4 Colour / 300dpi
Approx. 19secs.
Maximum Document SizeFlatbed:A4 / LTR (216 x 297mm)
Copy
Maximum Document SizeA4 / Letter (216 x 297mm)
Compatible MediaSize:A4, A5, B5, Letter, 4 x 6″, 5 x 7″
Type:Plain Paper
Photo Paper Pro Platinum (PT-101)
Photo Paper Plus Glossy II (PP-201)
Photo Paper Pro Luster (LU-101)
Photo Paper Plus Semi-Gloss (SG-201)
Glossy Photo Paper “Everyday Use” (GP-601)
Glossy Photo Paper “Everyday Use” (GP-508)
Matte Photo Paper (MP-101)
Image QualityDraft, Standard, High
Copy SpeedDocument: Colour:
sFCOT / Simplex:
Approx. 20secs.
Document: Colour:
sESAT / Simplex:
Approx. 7.2ipm
Multiple CopyBlack / Colour:99 pages
Network
InterfaceWireless LAN b/g/n, USB 2.0 Hi-Speed
ProtocolTCP/IP
Wireless LANNetwork Type:IEEE802.11n / IEEE802.11g / IEEE802.11b
Frequency Band:2.4GHz
Channel:1 – 13
Range:Indoor 50m (depends on the transmission speed and conditions)
Security:WEP64 / 128bit, WPA-PSK (TKIP / AES), WPA2-PSK (TKIP / AES)
Direct connection (Wireless LAN)Available
System RequirementsWindows:Windows 8 / Windows 7 / Window Vista / Windows XP
Macintosh:Mac OS X v10.7.5 and later
General
Operation PanelDisplay:LCD (2.5inch / 6.2cm TFT colour)
Apple AirPrintAvailable
MopriaAvailable
Google Cloud PrintAvailable
Canon Print Service Plug-In
(on Android OS)
Available
PIXMA Cloud LinkFrom smartphone or tablet:Available
From printer:Available
Canon PRINT Inkjet / SELPHY App
(for iOS / Android OS)
Canon Easy-PhotoPrint
(for Windows RT OS)
Available
PictBridgeWireless LAN:Available
Operating EnvironmentTemperature:5 – 35°C
Humidity:10 – 90% RH
(no dew condensation)
Recommended EnvironmentTemperature:15 – 30°C
Humidity:10 – 80% RH
(no dew condensation)
Storage EnvironmentTemperature:0 – 40°C
Humidity:5 – 95% RH
(no dew condensation)
Acoustic Noise (PC Print)Photo (4 x 6″)Approx. 43.0dB(A)
PowerAC 100 – 240V, 50 / 60Hz
Power ConsumptionOFF:Approx. 0.2W
Standby (scanning lamp is off)
(USB connection to PC):
Approx. 0.7W
Copying:
(USB connection to PC)
Approx. 12W
EnvironmentRegulation:RoHS (EU, China), WEEE (EU)
Eco-Label:Energy Star, EPEAT
Dimension (W x D x H)Approx. 455 x 369 x 148mm
WeightApprox. 6.3kg
