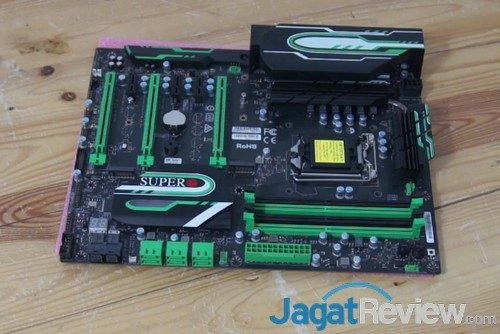

Video Review Motherboard SuperO C7Z270-CG
Selama ini, Supermicro lebih dikenal sebagai produsen motherboard untuk segmen server dan workstation. Namun, dalam beberapa tahun terakhir ini, mereka mencoba untuk turut terjun ke PC desktop melalui beberapa varian motherboard mereka. Kini, mereka lebih serius lagi menggarap segmen PC desktop, terutama untuk gaming, melalui sub-brand SuperO. Salah satu motherboard dari sub-brand itu pun datang menghampiri kami, yaitu C7Z270-CG. Hal apa saja yang ditawarkan SuperMicro di motherboard tersebut? Kami akan mengulasnya dalam video review ini!
Spesifikasi
Berikut ini spesifikasi dari motherboard SuperMicro SuperO C7Z270-CG sesuai yang ditampilkan SuperO di situs resmi mereka:
- Product:
SKUC7Z270-CG-L - Form Factor:
ATX - Dimensions:
12″ x 9.6″, (30.5 cm x 24.4 cm) - CPU Core/Cache:
Intel® LGA 1151(H4) 7th/6th Gen Core i7/i5/i3/Pentium®/ Celeron®processors (up to 120W TDP) - Memory Capacity:
4x 288-pin DDR4 DIMM slots
Supports up to 64GB DDR4 Non-ECC Un-Buffered memory (UDIMM) in 4 DIMM slots - Memory Type:
Frequency up to DDR4 2400MHz DDR4 Non-ECC Un-buffered 288-pin (UDIMM) gold-plated DIMMs
Supports Intel® overclocking Extreme Memory Profile (XMP) DIMM (Up to 2800+MHz) - DIMM Sizes:
16GB, 8GB, 4GB - Memory Voltage:
1.2V - Chipset:
Intel® Z270 Express Chipset - On-Board SATA:
SATA3.0 (6Gbps) via Intel® Z270 Express Chipset, 6x SATA (RAID 0, 1, 5, 10) - On-Board Audio:
RealTek ALC1150 High Definition Audio - Network Controllers:
Intel® i219V Single Port Gigabit Ethernet, Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output - Input/Output:
- SATA: 6x SATA3 (6Gbps) ports
- LAN: 1x RJ45 Gigabit Ethernet LAN port
- USB:
6x USB 3.0 ports (4 rear, 2 via headers)
6x USB 2.0 ports (2 rear, 4 via headers)
1x USB 3.1 Type A port (rear)
1x USB 3.1 Type C port (rear) - Audio: 7.1 HD Jacks
- Display:
1x DVI-D
1x HDMI 1.4b
1 DP (DisplayPort) 1.2
Support Triple display, Support 4K display devices - Keyboard/Mouse: PS/2 connector for mouse and keyboard
- Serial Port/Header: 1x COM port (header)
- Temperature:
Monitoring for CPU and chassis environment
CPU thermal trip support
Thermal Monitor 2 (TM2) support
PECI - PCI-Express:
2x PCIe 3.0 x16 slots (run at 16/NA or /8/8)
1x PCIe 3.0 x4 slots
3x PCIe 3.0 x1 slots
2x PCIe 3.0 x4 M.2 (2260/2280/22110)(M-key) - BIOS Type:
128Mb SPI Flash EEPROM with AMI BIOS - BIOS Features:
DMI (SMBIOS) 2.7
ACPI 5.0
USB Keyboard Support - Software:
SuperDoctor® V
Watch Dog - Power Configurations:
ACPI Power Management
Keyboard Wakeup from Soft-Off
Power-on mode for AC power recovery - Voltage:
+12V, +3.3V, +5V, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, Chassis intrusion header, Monitors CPU voltages, VBAT - FAN:
Total of 5 fan headers supporting up to 5 fans
5 fans with tachometer status monitoring
Status monitor for speed control
Status monitor for on/off control
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors - LED:
Suspend static indicator LED - Other Features:
Chassis intrusion detection
Chassis intrusion header
RoHS

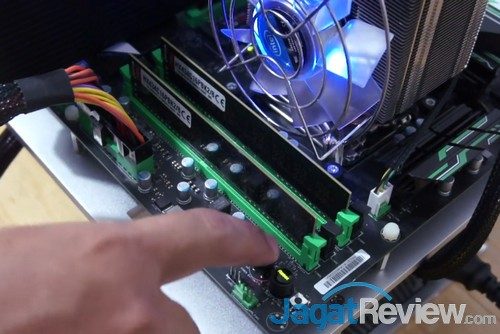

Platform Pengujian
- Prosesor: Intel Core i5-7600K
- Motherboard: SuperO C7Z270-CG
- RAM: Kingston DDR4-3200 2x 4 GB
- SSD M.2 NVMe: Samsung 950 Pro 256 GB
- PSU: Enermax Triathlor ECO 800 W
- Benchtable: Streacom Open Benchtable (AOCT Edition)
- HSF: Intel DBX-B
Video Review
Penasaran dengan motherboard SuperO C7Z270-CG ini? Kami menyajikan ulasannya dalam bentuk video!
