Review Gigabyte Z77-UP4 TH: Motherboard Intel Ivy Bridge dengan 2 Port Thunderbolt

Reading time:
November 29, 2012

Setelah memulai debut perdana di PC buatan Apple, interface Thunderbolt akhinya hijrah ke PC non-Apple, PC berbasis Windows. Di tahun 2012 ini, produsen komponen komputer mulai memperkenalkan produk motherboard Intel dengan interface Thunderbolt. Interface Thunderbolt menawarkan bandwidth total sebesar 10 Gbps atau 2 kali lipat bandwidth yang ditawarkan oleh USB 3.0. Masuknya interface Thunderbolt pada PC Windows tentu mendorong produsen lainnya untuk memproduksi perangkat dengan interface ini tidak hanya untuk sistem operasi milik Apple tetapi juga untuk sistem operasi Windows. Untuk PC berbasis Windows, interface Thuderbolt tersedia pada motherboard Intel dengan chipset Z77. Thunderbolt akan menggunakan 4 dari 16 jalur PCIe pada chipset Intel Z77 sebagai jalur komunikasinya. Ini berarti jumlah perangkat yang menggunakan jalur PCIe akan berpengaruh pada bandwidth total Thunderbolt. gigabyte z77 up4 th heatsink pch Beberapa waktu yang lalu kami kembali kedatangan motherboard dengan interface Thunderbolt besutan produsen Gigabyte. Motherboard bernama Z77-UP4 TH tidak hanya menawarkan feature Dual Thunderbolt, motherboard ini pun datang dengan berbagai feature yang telah menjadi ciri khas Gigabyte seperti Ultra Durable 5. Penasaran dengan feature maupun performanya? Simak ulasan lengkapnya di bawah ini.

Chipset Intel Z77

intel ivy bridge chipset z77

Spesifikasi

CPU
  1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
  2. L3 cache varies with CPU

(Some Intel® Core™ processors require a graphic card, please refer “CPU support List” for more information.)

Chipset
  1. Intel® Z77 Express Chipset
Memory
  1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
  2. Dual channel memory architecture
  3. Support for DDR3 2400+ (OC)/1600/1333/1066 MHz memory modules
  4. Support for non-ECC memory modules
  5. Support for Extreme Memory Profile (XMP) memory modules

(Please refer “Memory Support List” for more information.)

Onboard GraphicsIntegrated Graphics Processor:

  1. 1 x D-Sub port
  2. 1 x DVI-D port, supporting a maximum resolution of 1920×1200 * The DVI-D port does not support D-Sub connection by adapter. * Simultaneous output for DVI-D and the MDP2 Thunderbolt port is not supported.
  3. 1 x HDMI port, supporting a maximum resolution of 1920×1200

Intel DSL3510L chip:

  1. 2 Thunderbolt ports (MDP1/MDP2) support for Mini-DisplayPort and Thunderbolt monitor(s), and supporting a maximum resolution of 2560×1600. * When a monitor connected to the DVI-D port, the MDP2 Thunderbolt port can support Thunderbolt storage device(s) only. * Due to PC architecture I/O resources limitation, the amount of the Thunderbolt devices can be used is dependent on the quantity of PCI Express and PCI devices be installed. (Refer to Chapter 1-7, “Back Panel Connectors”, and Chapter 2, “Peripherals\Intel(R) Thunderbolt” for more information.)
Audio
  1. Realtek ALC892 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
  5. Support for S/PDIF In
LAN
  1. 1 x Realtek GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    1. 1 x PCI Express x16 slot, running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.
    1. 1 x PCI Express x16 slot, running at x4 (PCIEX4) * The PCIEX4 slot is available only when an Intel 22nm (Ivy Bridge) CPU is installed. * The PCIEX4 slot shares bandwidth with the PCIEX8 and PCIEX16 slots. When the PCIEX4 slot is populated, the PCIEX16 slot will operate at up to x8 mode and the PCIEX8 will operate at up to x4 mode. (The PCIEX16, PCIEX8 and PCIEX4 slots conform to PCI Express 3.0 standard.) * Whether PCI Express 3.0 is supported depends on CPU and graphics card compatibility.
    1. 3 x PCI Express x1 slots (The PCIEX1 slot conforms to PCI Express 2.0 standard.)
  1. 1 x PCI slot
Multi-Graphics Technology
  1. Support for AMD CrossFireX™ / NVIDIA SLI technology
Storage InterfaceChipset:

  1. 2 x SATA 6Gb/s connectors (SATA3 0/SATA3 1) supporting up to 2 SATA 6Gb/s devices
  2. 4 x SATA 3Gb/s connectors (SATA2 2~SATA2 5) supporting up to 4 SATA 3Gb/s devices
  3. 1 x mSATA connector * The SATA2 5 connector will become unavailable when the mSATA connector is installed with a solid state drive.
  4. Support for RAID 0, RAID 1, RAID 5, and RAID 10 * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.
USBChipset:

  1. Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers) * In Windows XP, the Intel USB 3.0 ports can support up to USB 2.0 transfer speed.
  2. Up to 6 USB 2.0/1.1 ports (available through the internal USB headers)

VIA VL800 chip:

  1. Up to 4 USB 3.0/2.0 ports on the back panel * Due to a Windows 7 limitation, please connect your USB device(s) to the USB 2.0/1.1 port(s) before the VIA USB 3.0 controller driver is installed.
ThunderboltIntel DSL3510L chip:

    1. 2 Thunderbolt ports on the back panel

Intel® Certified Thunderbolt™ Device

Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 2 x SATA 6Gb/s connectors
  4. 4 x SATA 3Gb/s connectors
  5. 1 x mSATA connector
  6. 1 x CPU fan header
  7. 4 x system fan headers
  8. 1 x front panel header
  9. 1 x front panel audio header
  10. 1 x S/PDIF In header
  11. 1 x S/PDIF Out header
  12. 1 x USB 3.0/2.0 header
  13. 3 x USB 2.0/1.1 headers
  14. 1 x serial port header
  15. 1 x Clear CMOS jumper
  16. 1 x Trusted Platform Module (TPM) header
Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x D-Sub port
  3. 1 x DVI-D port
  4. 1 x HDMI port
  5. 6 x USB 3.0/2.0 ports
  6. 2 x Thunderbolt ports
  7. 1 x RJ-45 port
  8. 1 x optical S/PDIF Out connector
  9. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
I/O Controller
  1. iTE I/O Controller Chip
H/W Monitoring
  1. System voltage detection
  2. CPU/System temperature detection
  3. CPU/System fan speed detection
  4. CPU overheating warning
  5. CPU/System fan fail warning
  6. CPU/System fan speed control * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
BIOS
  1. 2 x 64 Mbit flash
  2. Use of licensed AMI EFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Unique Features
  1. Support for @BIOS
  2. Support for Q-Flash
  3. Support for Xpress Install
  4. Support for Xpress Recovery2
  5. Support for EasyTune * Available functions in EasyTune may differ by motherboard model.
  6. Support for eXtreme Hard Drive (X.H.D)
  7. Support for Auto Green
  8. Support for ON/OFF Charge
  9. Support for Q-Share
  10. Support for 3D Power
  11. Support for EZ Setup
  12. Support for Cloud Station
Bundle Software
  1. Norton Internet Security (OEM version)
  2. Intel® Smart Response Technology
  3. Intel® Rapid Start Technology
  4. LucidLogix Virtu MVP * Make sure the monitor cable has been connected to the integrated graphics port on the back panel.
Operating System
  1. Support for Microsoft® Windows 8/7/XP
Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm

Platform Pengujian Gigabyte Z77-UP4 TH

  • Prosesor: Intel Core i7 3770K
Intel Ivy Bridge Aufmarker 1

gtx 560 ti card

  • Memory:  8 GB of KHX1600C9D3K4/16GX
hx prodimg genesis4

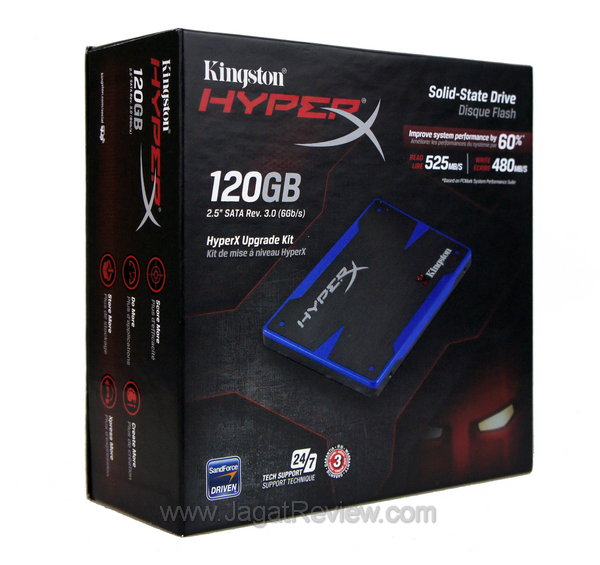

Kingston HyperX SSD 120GB Kemasan

  •  Flash Drive: Kingston DataTraveler HyperX 3.0
prodDT HX img
  • Power Supply: Corsair AX850

ax850 angled 1

  • CPU Heatsink: Corsair H80

h80 rad fans

  • Monitor: LCD Monitor 1920×1080
  • Input: Generic Keyboard and Mouse
  • OS: Windows 7 Ultimate 64-bit SP1
