Review Biostar Hi-Fi Z87X 3D: Motherboard Z87 Murah dengan Feature Audio Lengkap
Seiring hadirnya prosesor Core i generasi empat dengan arsitektur Haswell maka semakin meningkat pula populasi motherboard dengan chipset Intel seri 8. Tentu saja motherboard dengan chipset Intel Z87 merupakan pilihan terbaik untuk menikmati platform Haswell secara maksimal. Sebagai kasta tertinggi, tidak aneh jika produsen menjejali motherboard Intel Z87 dengan beragam feature, komponen, maupun teknologi kelas atas generasi terbaru.
Tambahan tersebut tentu akan membuat harga jual motherboard membengkak. Walaupun begitu, ternyata masih ada produsen yang mencoba menghadirkan motherboard Intel Z87 dengan harga terjangkau seperti Biostar dengan motherboard Hi-Fi Z87X 3D yang akan kami ulas lengkap di artikel kali ini. Seperti apakah performanya dan feature unggulan apa saja yang ditawarkan? Simaklah bahasannya berikut ini.
Intel Z87
Spesifikasi
| Chipset | Intel Z87 |
| CPU SUPPORT | Intel® Core™ i7 LGA 1150 Processor |
| Intel® Core™ i5 LGA 1150 Processor | |
| Intel® Core™ i3 LGA 1150 Processor | |
| Intel® Pentium® LGA 1150 Processor | |
| Maximum CPU TDP (Thermal Design Power) : 95Watt | |
| MEMORY | Support Dual Channel DDR3 2800(OC)/ 2600(OC)/ 2400(OC)/ 2200(OC)/ 2133(OC)/ 1866(OC)/ 1800(OC)/ 1600/ 1333/ 1066 MHz |
| 4 x DDR3 DIMM Memory Slot | |
| Max. Supports up to 32GB Memory | |
| EXPANSION SLOT | 2 x PCI-E x16 3.0 Slot (CFX x8) |
| 1 x PCI-E x16 2.0 Slot (x4) | |
| 3 x PCI-E x1 2.0 Slot | |
| STORAGE | 6 x SATA3 Connector |
| Support SATA RAID: 0,1,5,10 | |
| Support Intel Smart Response Technology | |
| USB | 2 x USB 3.0 Port |
| 1 x USB 3.0 Header | |
| 4 x USB 2.0 Port | |
| 2 x USB 2.0 Header | |
| LAN | Realtek RTL8111F – 10/100/1000 Controller |
| MULTI GRAPHICS | AMD CrossFireX |
| INTEGRATED VIDEO | By CPU model |
| Supports DX11.1 | |
| Supports HDCP | |
| CODEC | Realtek ALC898 8 Channel Blu-ray Audio |
| REAR I/O | 1 x PS/2 Keyboard |
| 2 x USB 3.0 Port | |
| 4 x USB 2.0 Port | |
| 1 x HDMI Connector | |
| 1 x DVI Connector | |
| 1 x VGA Port | |
| 1 x RJ-45 Port | |
| 6 x Audio Connector | |
| INTERNAL I/O | 1 x USB 3.0 Header |
| 2 x USB 2.0 Header | |
| 6 x SATA3 6Gb/s Connector | |
| 1 x Front Audio Header | |
| 1 x Front Panel Header | |
| 1 x S/PDIF-OUT Header | |
| 1 x CPU FAN Header | |
| 4 x System FAN Header | |
| 1 x Serial Header | |
| 1 x CIR Header | |
| DIMENSION | ATX Form Factor Dimension: 30.5cm x 24.4cm ( W x L ) |
| OS SUPPORT | Support Windows 7 / 8 |
| ACCESSORIES | 4 x SATA Cable |
| 1 x CrossFire Connector | |
| 1 x I/O Shield | |
| 1 x DVD Driver | |
| 1 x User Manual | |
| FEATURES | Windows 8 Compatible |

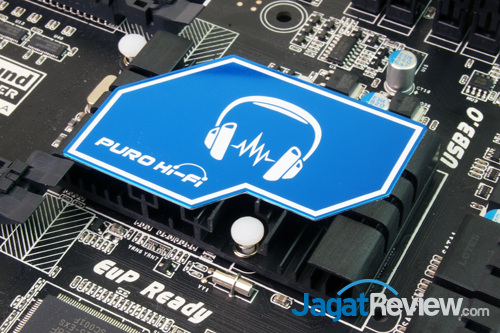

| Supports PURO Hi-Fi 3D | |
| Supports Smart Speed LAN | |
| Supports BIO-Remote2 | |
| Supports BIO-Remote | |
| Supports 100% Solid capacitor | |
| Supports Rapid Switch2 | |
| Supports Rapid Debug3 | |
| Supports Charger Booster | |
| Supports BIOS Online Update |
Platform Pengujian Biostar Hi-Fi Z87X 3D
- Memory: 2x 4GB Kingston HyperX Genesis (XMP Profile Run @1600 MHz)
- Storage: Kingston HyperX SSD 120GB
- Flash Drive: Kingston DataTraveler HyperX 3.0
- Power Supply: Corsair AX850
- CPU Heatsink: Corsair H80
- Monitor: LCD Monitor 1920×1080
- Input: Generic Keyboard and Mouse
- OS: Windows 7 Ultimate 64-bit SP1
